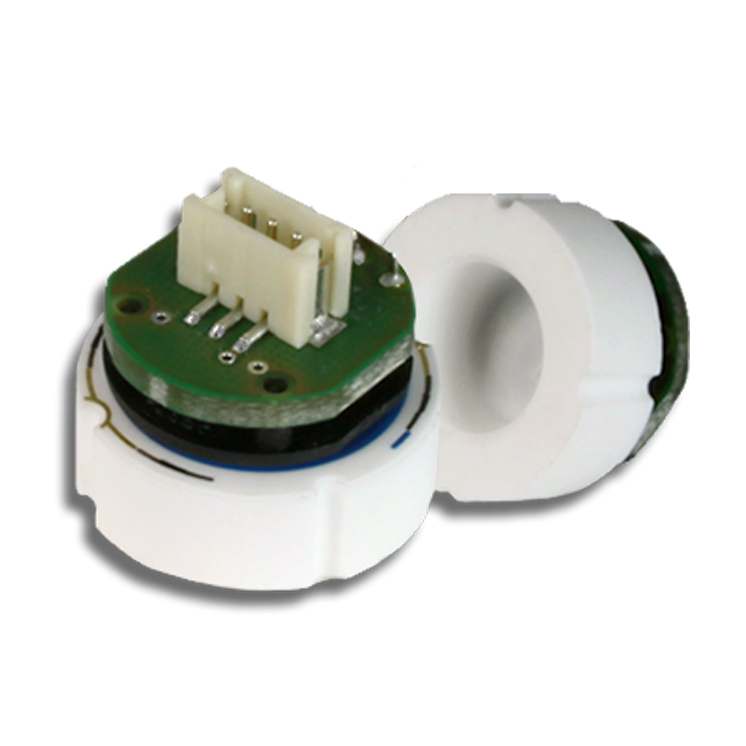

Piezoresistive Monolithic Ceramic Pressure Sensors - CPA602 Series

? 30 to 6000 psi gauge Pressure ranges
? Supply voltage: 4.5 to 5.5 VDC
? Reference temperature: 25 °C
? Measuring supply voltage: 5 VDC
? Supply current: ≤ 2.5 mA
? Operating temperature range: - 40 to 85 °C
? Compensated temperature range: 0 to 85 °C

Model Number: CPA602 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Piezoresistive Monolithic Ceramic Pressure Sensor

CPA602 Series Pressure Sensors General Description
The CPA 602 Series offers piezoresistive monolithic, media isolated ceramic pressure sensors. Product highlights include excellent chemical resistance and mechanical robustness. Using thick-film technology, the measuring bridge is printed directly onto one side of the ceramic diaphragm. The structure-free backside can be directly exposed to the medium to be measured. Due to a high resistance to chemicals, additional protection is not necessary. On the basis of solid construction, these sensors are mostly unaffected by clamping effects after mounting, and therefore OEM customers can easily install them in different housings. The ceramic sensor has been especially designed for pasty, polluted, and aggressive media, and for oxygen applications.

CPA602 Series Pressure Sensors Features
? Digital calibrated
? Ratiometric output signal (0.5 to 4.5 V)
? Excellent chemical resistance
? Easy mounting
? 30 to 6000 psi gauge Pressure ranges

CPA602 Series Pressure Sensors APPLICATIONS
? Medical Devices
? Environmental Controls
? Plant and Mechanical Engineering
? Automotive

CPA602 Series Pressure Sensors Standard Pressure Ranges

PSI	bar	Proof pressure		Admissible negative pressure	Burst pressure		Output signal (FSO)
		[PSI/bar]		[PSI/bar]	[PSI/bar]
30	2	60	4	vacuum resistant	120	≥ 8	0.5 to 4.5V (@ V_s =5V DC)
5	150	10	300		300	≥ 20
10	300	20	525		525	≥ 35
20	600	40	900		900	≥ 60
50	1500	100	2100		2100	≥ 140
100	2250	150	4500		4500	≥ 300
200	4500	300	6000		6000	≥ 400
400	7500	500	9750		9750	≥ 650
Reference Conditions
Supply voltage		4.5 to 5.5 VDC
Output signal / Supply		3-wire ratiometric: 10 to 90% of V_s(V₀ = 0.5 to 4.5 VDC @ V_s = 5.0 V)
Reference temperature		25 °C
Measuring supply voltage		5 VDC
Performance Characteristics
Supply current		≤ 2.5 mA
Offset		0.5 V @ Vs = 5 V
Span		4.0 V @ Vs = 5 V
Output load resistance		≥ 5 kΩ
Total error (non-linearity, hysteresis, non-repeatability)		Pressure ranges: ≤ 750 psi:≤ ± 0.4 % FS (terminal based) Pressure ranges: > 750 psi: ≤ ± 0.8 % FS typ. (1.5 % FS max.) (terminal based) (reduced error upon costumer request)
Calibration error		≤ ± 0.3 % FS
Long term stability		≤ ± 0.3 % FS/year (at reference conditions)
TC Offset (TC0)		≤ ± 0.02 % FS / °C
TC Span (TCS)		≤ - 0.012 % FS / °C
Environmental Specification
Operating temperature range		- 40 to 85 °C
Storage temperature range		- 40 to 100 °C
Compensated temperature range		0 to 85 °C
Electrical connection
on PCB of sensor		Mates with JST socket parts: B3B-ZR-SM4-TF
on connection wire		Connection housing: ZHR-3
		Connection pin		Model No.	Applicable wire
					[mm2]	AWG#	Insulation O.D.[mm]
				SZH-002T-P0.5	0.08 ~ 0.13	28 ~ 26	0.8 ~ 1.1
				SZH-003T-P0.5	0.032 ~ 0.08	32 ~ 28	0.5 ~ 0.9
Miscellaneous
Media wetted parts		Ceramic Al2O3 96 %
Weight		approx. 7 g
Dimension		? = 18 ± 0.1 mm d = 6.35 ± 0.1 mm (excl. signal conditioning board)
