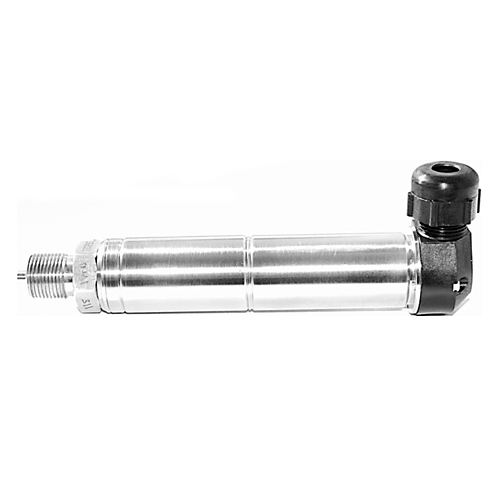

High-temperature Gage Pressure Transmitters 0-160MPa - MIDA-SG-12-11-H

Standard ranges 0-160MPa
Operating temperature range:
-40 ... +150(+200) - for A-zone;
40…+80 - for electronics ambient temperature (C-zone)
Accuracy no more than: ±0,25%?; ±0,5?%
Supply voltage: 12 ... 36V depending on loads resistance
Ingress protection: IP64

Model Number: MIDA-SG-12-11-H

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

High-temperature Gage Pressure Transmitters 0-160MPa MIDA-SG-12-11-H

Pressure transmitter SG-12-11-H?is based on Russia advanced titanium / silicon - sapphire pressure sensor and?transmitter circuits. It is with wide pressure range, wide temperature range, high stability, wear?resistance, impact resistance and anti-corrosion and other prominent features. Moreover itcan work in cold regions and high temperature rigions for long time.?

Pressure transmitter SG-12-11-H Specification

Applications	Industrial instrumentation, process & measure control systems for high-temperature liquids and gases
Measured medium	High-temperature liquids and gases compatible with titanium alloys and?stainless steel
Standard ranges, MPa	0-0,01… - 0-160
Output signal (wires)	4-20 mA (2-wire)
Operating temperature range,?℃	-40 ... +150(+200) - for A-zone; 40…+80 - for electronics ambient?temperature (C-zone)
Compensated temperature range of output signal, ℃	+20 ... +200
Overall accuracy in compensated?temperature range, no more than ±%	1,0
Accuracy (comb. L.H.R), no more than ±%	0,25; 0,5
Supply voltage, V	12 ... 36 depending on loads resistance
Consumed current, no more, mA	20,2
Type and marking of intrinsic safety	0ExiaIICT3
Ingress protection	IP64
Climatic modification	UHL**3.1
Mechanical stability	V3
Electrical connection	Sealing gland straight (S) and angle (A); plug/socket (P)
Pressure port	М20 x 1,5; М12 x 1,5 (up to 50 MPa)
Weight no more than, kg	0,4
Specifications	ТУ4212-043-18004487-2003
Number in the State Register of measuring?devices of the Russian Federation	17635-03
