Product Specification

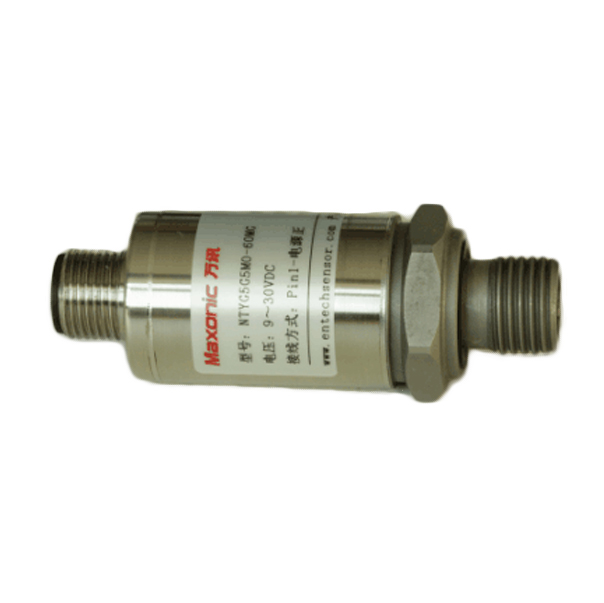

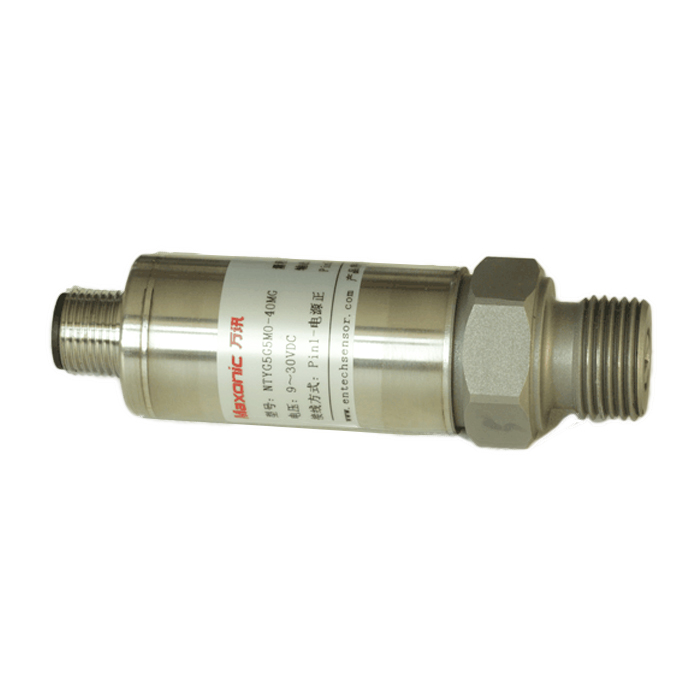

NTYG Series Pressure Sensors Description
NTYG Series general industrial pressure transmitter uses strain silicon technology and traditional metal strain gauge principle, the new technology uses silicon strain gauges and temperature sintering process, making the pressure sensor sensitivity increase more than five times, and then with a proprietary digital amplifier and digital.

temperature
compensation circuit, the electrical characteristics of the sensor , temperature characteristics and long-term stability is guaranteed. Sensor interface and housings are made of stainless steel, with good corrosion resistance. This product can be widely used in industrial, aviation, aerospace, automotive, medical and other fields of refrigeration.

NTYG Series Pressure Sensors Features
? Measure range: Minimum 0-350kPa, Maximum 0-70MPa
? 17-4PH stainless steel isolation, all stainless steel construction
? No internal pressure port O-rings, no welding, no silicone oil, no leakage risks
? High reliability, high overload
? Shape structure diversification

NTYG Series Pressure Sensors Application
? Air compressor, Natural gas compressor
? Hydrogen, oxygen equipment, air conditioning and refrigeration equipment
? High power diesel engine
? Industrial and civil pumps
? Injection molding machines, die casting machines, construction machinery
? Household appliances and other consumer products in pressure measurement

NTYG Series Pressure Sensors Specification
