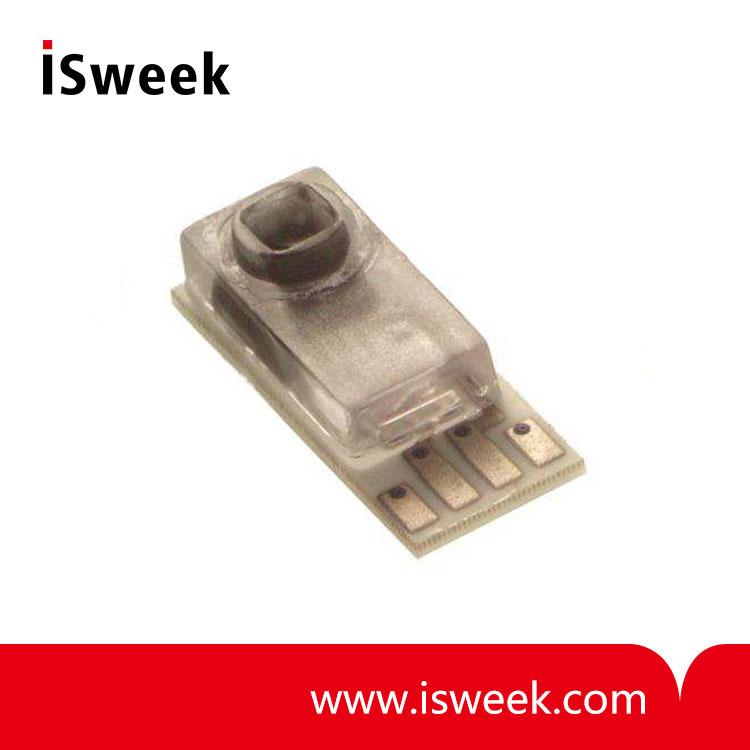

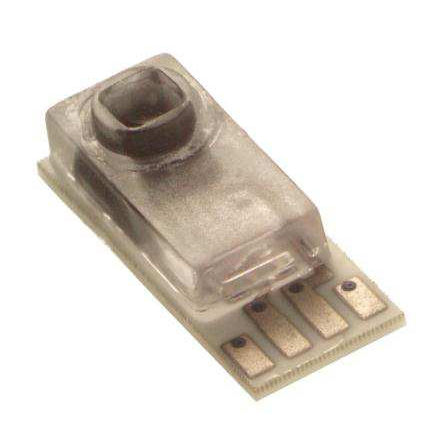

Disposable Intra Uterine Pressure Sensor - MEAS 1630

? ?Operating Pressure Range: -50 ~ 300mmHg
? ?Sensitivity: 4.9~5.1uV/V/mmHg
? ?Warm-Up Time: 5 Seconds
? ?Frequency Response?: 1200Hz
? ?1% Accuracy for Replacements
? ?5.0 uV/V/mmHg Sensitivity
? ?Operating Temperature10°C to 40°C
? ?Humidity (External)?: 10-90% (non-condensing)?

Model Number: MEAS 1630
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

1630 Medical Pressure Sensor Specifications
? Disposable Intra Uterine Pressure Sensor
? Disposable Blood Pressure Sensor
? AAMI Specifications
? Low Cost Disposable
? Dielectric Gel Barrier
? Fully Tested & Calibrated

The 1630 is a fully piezoresistive silicon pressure sensor for use in intrauterine pressure monitoring. The sensor is designed to be used with automated assembly equipment and can be dropped directly into a customer's disposable intrauterine housing. The sensor is designed to meet the requirements as described in the Association for the Advancement of Medical Instrumentation (AAMI) specification for Blood Pressure Transducers.

The pressure sensor consists of a pressure sensing element mounted on a ceramic substrate. Thick film resistors on the ceramic substrate are laser trimmed for compensation and calibration. A plastic cap is attached to the ceramic substrate to provide an easy method of attachment to the customer’s assembly and protection for the sensing element. A dielectric gel is placed over the sensor to provide fluid isolation.

The 1630 pressure sensors are batch manufactured in a 3x8 element array on a ceramic substrate (24 units per substrate). The products are shipped in anti-static shipping containers. They can also be shipped on a tape and reel. Performance characteristics and packaging can be easily tailored on a special order basis to meet the requirements of specific customers.

1630 Medical Pressure Sensor Features
? Low Cost, Medical Applications
? Small Size and Reliable Performance
? Gel Isolation for Liquids
? Operates from 10°C to 40°C
? Compatible for Automated Assembly
? 1% Accuracy for Replacements
? 5.0 uV/V/mmHg Sensitivity
? Customization for OEM Applications

1630 Medical Pressure Sensor Applications
? Intrauterine Monitoring
? Intensive Care Units
? Infusion Pumps
? Kidney Dialysis Machines
? Vacuum Assisted Birth
? Surgical Procedures

1630 Medical Pressure Sensor Performance Specifications
Supply Voltage: 5.0 Vdc
Ambient Temperature: 23°C (unless otherwise specified)

Parameters	Min	Typ	Max	Units	Notes
Operating Pressure Range	-50		300	mmHg
Over Pressure	-400		1200	mmHg
Zero Pressure Offset	-20		20	mmHg
Sensitivity	4.9	5.0	5.1	uV/V/mmHg
Linearity and Hysteresis (0 to 300 mmHg)	-2.0		2.0	%Span	1
Input Impedance	1200		3200	?
Output Impedance	270		330	?
Supply Voltage	2	5	10	Vdc or Vac rms
Leakage Current (@ 120 Vac rms, 60Hz)			2	uA
Warm-Up Time		5		Seconds
Frequency Response		1200		Hz
Offset Drift			2	mmHg	2
Thermal Span Shift	-0.1		0.1	%/°C	3
Thermal Offset Shift	-0.3		0.3	mmHg/°C	3
Phase Shift (@ 5KHz)			5	Degrees
Sterilization (ETO)	3			Cycles	4
Operating Temperature	10		40	°C
Storage Temperature	-25		+70	°C
Operating Product Life			72	Hours
Shelf Life	3			Years
Humidity (External)	10-90% (non-condensing)
Media Interface	Dielectric Gel

Notes
1. Best fit straight line.
2. Over an 8 hour time period after a 10 minute warm-up.
3. Over operating temperature range 10-40°C with respect to 23°C.
4. Sterilization performed by customer.
