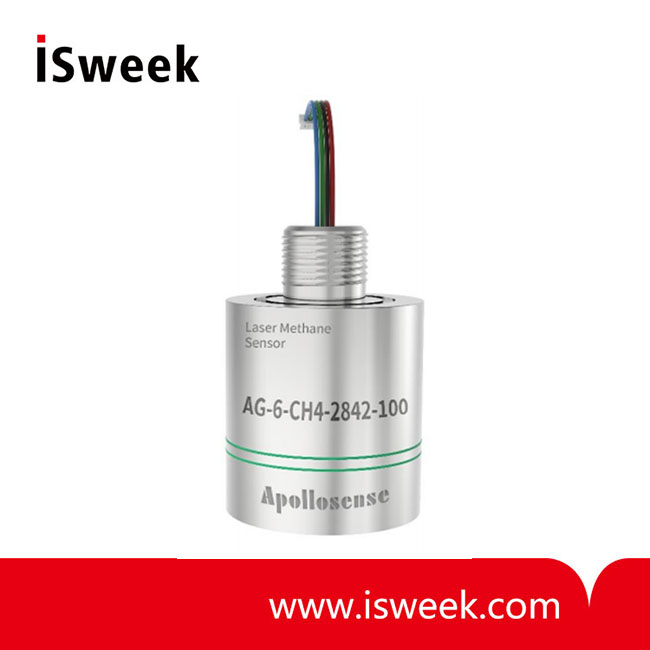

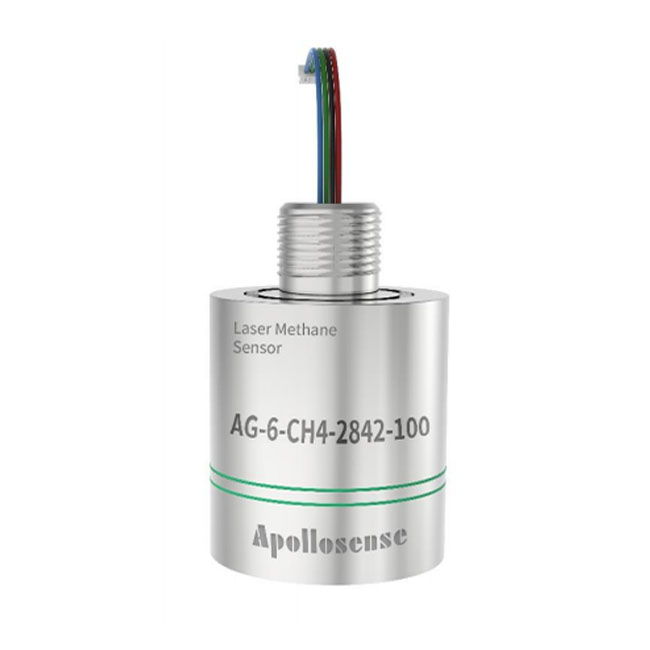

Wide Temperature Laser Methane Sensor - Advanced Series - AG-6-CH4-2842-100
? Strong anti-interference
? High detection accuracy
? High environmental adaptation
? Strong structural protection
? Long life ≥ 10 years
? Calibration-free
? Wide temperature use
- Model Number: AG-6-CH4-2842-100
- Data Sheet:
- Quantity:
- - +
Product Specification
Wide Temperature Laser Methane Sensor - Advanced Series -AG-6-CH4-2842-100 Product Description：

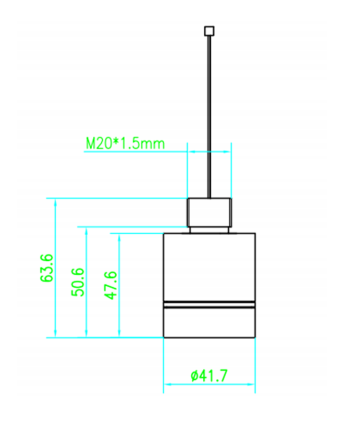

AG-6-CH4-2842-100 methane sensor adopts self-developed laser and photodetector core devices, combined with a stable temperature control algorithm, concentration inversion algorithm, and temperature compensation algorithm to achieve accurate measurement of methane concentration; the product is based on the Tunable Laser Absorption Spectroscopy (TD-LAS), the internal design of the multiple reflective optical path structure, absorption of the light range is long, and the detection sensitivity is high; Standard threaded mounting interface and stainless steel structure design to meet the requirements of explosion-proof, convenient for customers to quickly product integration, can be widely used in underground space, catering industry, industrial chemical industry and coal mining and other fields.
Wide Temperature Laser Methane Sensor - Advanced Series -AG-6-CH4-2842-100 Technical
Specification：
Measuring Range
0-100% VOL (CH4)
Response Time(T90)
< 15s
Measurement Error
< ±0.06VOL (0-1% VOL)
< ±6% VOL (1-20% VOL)
Lower Detection Limit
0.15% VOL
Operating Voltage
3.0VDC to 3.6VDC
Operating Current
(Average)
< 30mA
Peak Current
< 160mA
Output Type
3.3V TTL level UART
Temperature Range
-40 - 70°C (Operating)
-40 - 60°C (Storage)
Humidity Range
0-99%RH (noncondensing)
Weight
255g
Expected Life
10 years
Warranty
18 months
Explosion Proof Signs
Ex ia lIC T6 Ga
IP Rating
IP 66
