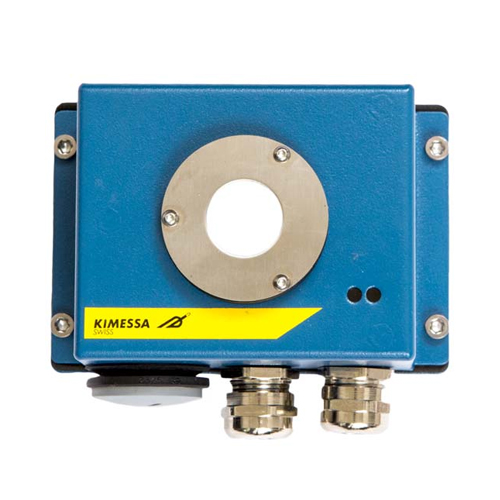

Gas sensor KSIM 1260 for detection of Sulfur Hexafluoride SF6 - KSIM 1260

Measuring range?: 0…1000 ppm/0…5 Vol. % (others on request)?
Response time t90?: < 90 seconds?
Operating temperature?: -30 °C ... +70 °C?
Pressure range?: atmospheric ± 10%?
Air humidity?: 5...95%?
Protection class?: IP 54?
Supply voltage?: 16.0...30.0 VDC

Model Number: KSIM 1260
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Gas sensor KSIM 1260 for detection of Sulfur Hexafluoride SF6

KSIM 1260 Sulfur Hexafluoride SF6 Sensor Mode of operation
The KSIM 1260 is a high quality infra red Sulfur Hexafluoride gas detector designed to operate with KIMESSA or third party control panels.

The infra red sensor technology is diffusion based and Sulfur Hexafluoride specific, housed in a robust metallic enclosure and designed for one-person calibration.

The versatile KSIM 1260 outputs allow for user selection of 0-20mA, 4-20mA, 0-10Vdc and digital BUS. The BUS option is used in conjunction with the addressable KIMESSA CANline-32-channel gas monitor panel, incorporating data logging and multi-optional programming capability. The SF6-detector is available with a linearised measuring range from 0…1000 ppm (0.1 Vol. %) up to 0…5.0 Vol. % and its output signal is temperature compensated from -30℃to +70℃.

A novel feature on the KSIM 1260 facilitates direct measurement of the gas level via a 3.5mm jack connection, enhancing the overall flexibility of the SF 6 sensor.

The KSIM 1260 is also designed for use with a hand held optical calibration tool called the CRC–Calibration Remote Control, permitting calibration of remote SF 6 sensors.

KSIM 1260 Sulfur Hexafluoride SF6 Sensor Technical specifications

Measuring range	0…1000 ppm/0…5 Vol. % (others on request)
Response time t90	< 90 seconds
Operating temperature	-30 °C ... +70 °C
Start up after reconditioning	maximum 1 h
Pressure range	atmospheric ± 10%
Air humidity	5...95%
Location sensitivity	none
Life-span at 20 °C	depends on the application
Protection class	IP 54
Weight	550 gr
Current consumption	maximum 60 mA
Output signal analogue (selectable with jumper)	4...20 mA/ 0...20mA/ 0...10 VDC/ 2...10 VDC
Cable analogue	3-core cable, shielded, 3x1.00m
Output signal BUS (digital)	CAN-Bus
Cable BUS (digital)	4-core cable, shielded, 4x1.00m²
Supply voltage	16.0...30.0 VDC

KSIM 1260 Sulfur Hexafluoride SF6 Sensor Cross sensitivity to other gases

Test gas	concentration of the test gas	display on the SF6-Detector
Ammonia NH3	100 ppm	...
Chlorine Cl2	50 ppm	...
Carbon Dioxide CO2	5000 ppm	...
Carbon Monoxide CO	250 ppm	...
Propane C3H8	5000 ppm	...
Sulphur Dioxide SO2	100 ppm	...
Hydrogen Sulphide H2S	50 ppm	...
Nitrogen Dioxide NO2	20 ppm	...
Nitric Oxide NO	48 ppm	...
Hydrogen H2	90 ppm	...
