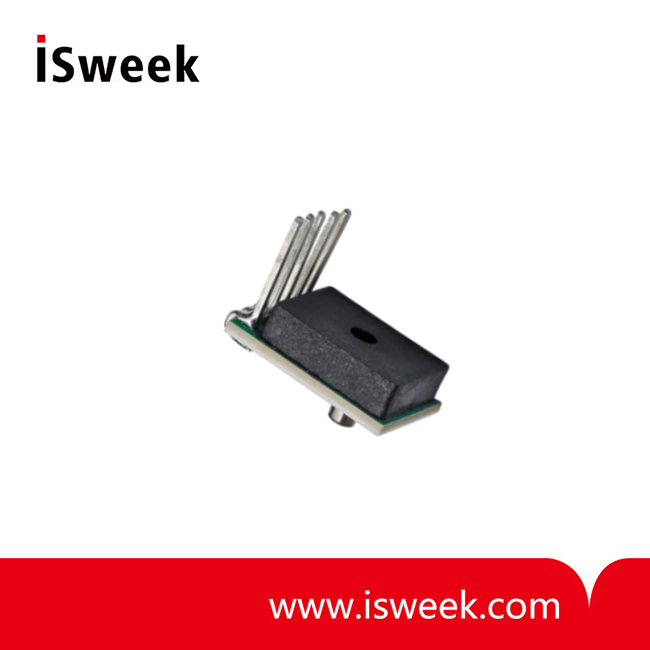

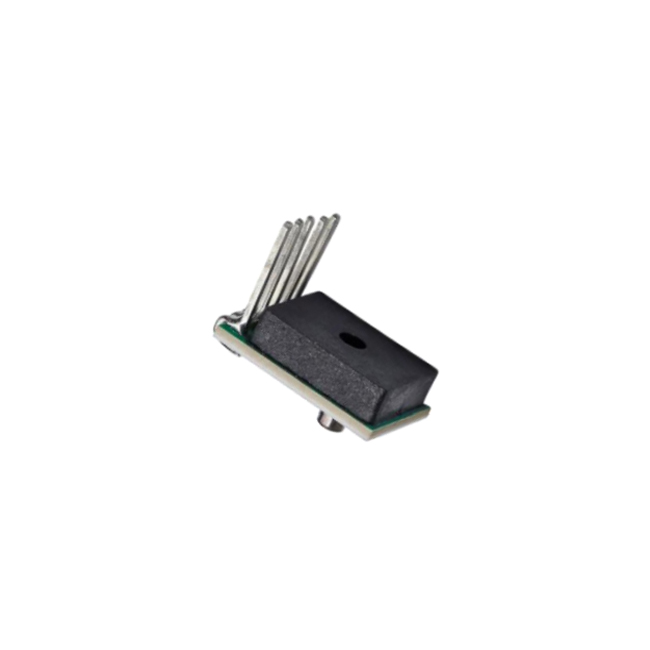

Universal Pressure Sensor - SYP-15 Series

SENT Output
Gauge Pressure
± 1.5 %FS Tolerance
Reliable in Harsh media
Fully Compensated

Model Number: SYP-15 Series
Data Sheet:

Quantity:: - +

Mouse over image to zoom

Product Specification

Universal Pressure Sensor SYP-15 Series Description：

The SYP-15 is a fully compensated pressure sensor based on MEMS piezoresistive element and ASIC. The Pressure sensor has excellent tolerance of ±1.5 %FS in the temperature range of -40 ℃ to 130 ℃. The SYP-15 can be universally used in industrial and automotive solutions in the low-pressure range from 0 to 15 bar, and It guarantees reliable operation in harsh media such as fuels, oils, and refrigerants.

The SYP-15 series has options such as pin terminals and entry caps that can be adapted to customer applications.

Universal Pressure Sensor SYP-15 Series FEATURES：

?SENT Output

? Gauge Pressure

? ± 1.5 %FS Tolerance

? Reliable in Harsh media

? Fully Compensated

Universal Pressure Sensor SYP-15 Series APPLICATIONS：

Automotive

? Fuel system

? Automotive HVAC

? Thermal management

Industrial

?HVAC

? Thermal management

? Hydraulic system

Universal Pressure Sensor SYP-15 Series PRODUCT SPECIFICATION：

Pressure
Detection range	0～15 bar
Accuracy	±1.5 %FS
Proof Pressure	22.5 bar
Burst Pressure	37.5 bar
Electrical specification
Supply voltage	5±0.25 V
Current consumption	10mA
Over Voltage Protection	+ 18 V
Reverse Polarity Protection	- 18 V
Environmental conditions
Operation Temperature	- 40℃ ～130 ℃
Storage Temperature	- 40℃ ～130 ℃
Size (mm)	W16.9×D11.2 ×H7.3
