Product Specification

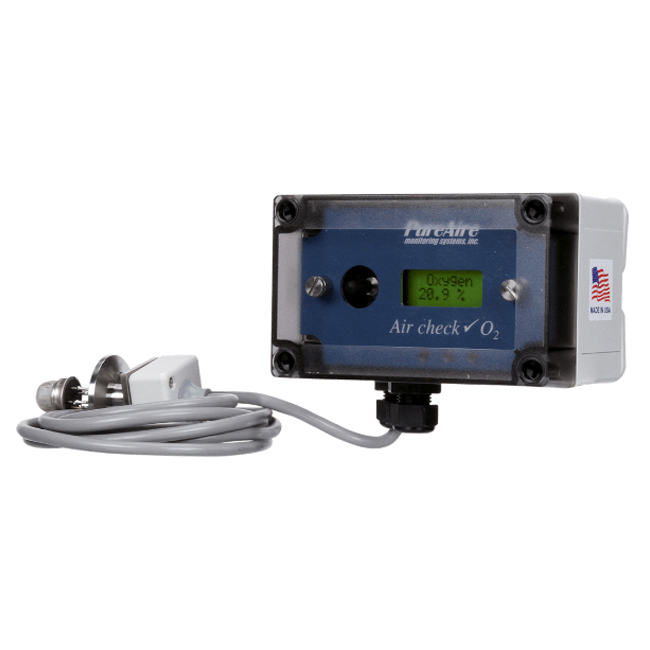

Air check O2
Oxygen Analyzer 0-1000ppm
Item #: 99097 oxygen monitor, 0-1000ppm

The Air check O2 Monitor is a compact gas monitoring system that's ideal for the continuous monitoring of gas lines, 3D printers, nitrogen gas compressors, vacuum chambers, and locations where low oxygen levels need to be monitored. Unlike electrochemical sensor cells the Air check O2 zirconium cell provides stable oxygen readings even in areas where temperature, barometric pressure and humidity levels are changing. The PureAire Air check O2 Deficiency Monitor is suitable for either indoor or outdoor use.

The heart of the monitoring system is a long lasting zirconium sensor, which responds to low oxygen conditions within seconds and provides accurate measurements over a wide temperature and humidity range. There are no zero or span calibration pots to adjust and when compared to disposable type sensors, our long life zirconium O2 sensor can save up to $475 annually and will pay for itself in just over 3 years!

Ideal for continuously monitoring oxygen levels in confined spaces or areas where inert gases are used, the Air check O2 Deficiency Monitor does not drift or loose sensitivity when the weather or temperature changes. The electronics are housed in a polycarbonate housing or optional EX for hazardous areas.

Oxygen Analyzer 0-1000ppm Features
? 0-1000ppm Range Sensor
? Works under vacuum
? Two-Alarm Relays
? No Maintenance Required
? Ultra Loud Built-in audible alarm 90 db
? Remote sensor capability up to 10 feet
? Digital Display, 4-20mA Analog Output
? Zirconium Oxide Sensor
? No Drift due to Thunderstorms or barometric pressure changes
? Wall mounting brackets
? Ce approved EMC EN 61326-1:2006

Oxygen Analyzer 0-1000ppm Specifications
