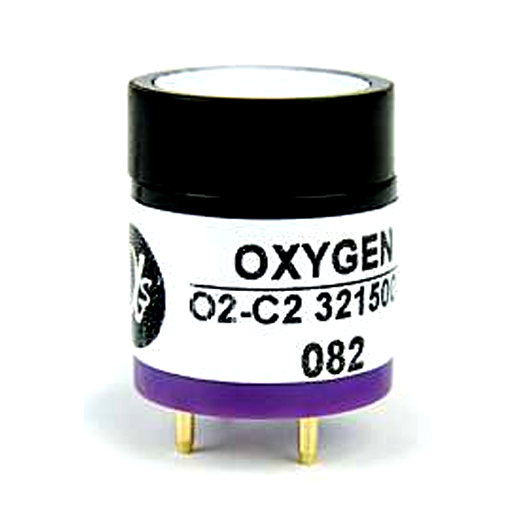

Oxygen Sensor (O2 Sensor) - O2-C2

? Output: 80 to 120 μA @ 20.9% O2
? Response time t90: < 50(s) from 20.9% to 0% O2
? Linearity: -0.6 % O2 deviation @ 10% O2
? Operating life: > 24 months
? Temperature range : -30 to 55 ℃
? Pressure range: 80 to 120 kPa
? Humidity range: 5 to 95 % rh continuous
? Weight: < 18 g

Model Number: O2-C2
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

O2-C2?Oxygen Sensor (O2 Sensor) Description

Alphasense Oxygen sensors use capillary flow control.

Unlike partial pressure oxygen sensors, they have good pressure and temperature dependence, making them the best choice in safety applications.

Standard galavanic sensors use lead for greatest reliability but fixed lifetime.?

O2-C2?Oxygen Sensor size:
20mm diameter, extra height allows additional filter material when measuring combustion gases

O2-C2?Oxygen Sensor (O2 Sensor)?PERFORMANCE
Output	μA @ 20.9% O2	80 to 120
Response time	t90 (s) from 20.9% to 0% O2	< 50
Zero current	μA in N2	< 2.5
Linearity	% O2 deviation @ 10% O2	-0.6

O2-C2?Oxygen Sensor (O2 Sensor)?LIFETIME
Output drift	% change in output @ 3 months	< 1
Operating life	months until 85% original output of 20.9% O2	> 24

O2-C2?Oxygen Sensor (O2 Sensor)?ENVIRONMENTAL
Humidity sensitivity	% O2? change: 0% to 95% rh @ 40℃	< 0.7
CO2? sensitivity	(% change O2 reading) / % CO2? @ 5% CO2	0.1
Pressure sensitivity	(% change of output)/(% change of pressure) @ 20kPa	< 0.1

O2-C2?Oxygen Sensor (O2 Sensor)?KEY SPECIFICATIONS
Temperature range	℃	-30 to 55
Pressure range	kPa	80 to 120
Humidity range	% rh continuous (0 to 99% rh short term)	5 to 95
Storage period	months @ 3 to 20℃ (store in sealed pot, open circuit)	6
Load resistor	Ω (recommended)	47 to 100
Weight	g	< 18? ? ? ? ? ? ? ? ? ? ? ?
