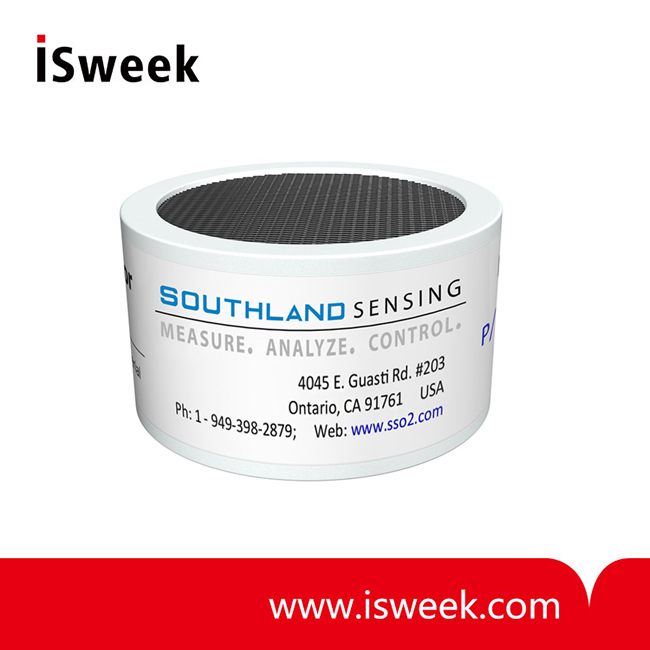

Trace PPM Oxygen Sensor (O2 sensor) - TO2-233

? Sensor Technology: Micro Fuel Cell
? Signal Output: 530 - 1050 uA
? Measuring Range: 0 - 10 PPM (Min); 0 - 10000 PPM (Max)
? Response Time T90: 7 Seconds
? Accuracy Full Scale: ±1% of Signal
? Repeatability F.S.: ±0.5%
? Operating Temp: 0 to 50oC
? Humidity: 0 - 100% RH (Non - Condensing)

Model Number: TO2-233
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

TO2-233 PPM Oxygen Sensor (O2 sensor)
Trace O2 measurement when CO2 > 0.1%. Fast Response, Competitive Replacement

TO2-233 PPM Oxygen Sensor (O2 sensor) Direct Replacement Guide
Analytical Industries: XLT-12-333

TO2-233 PPM Oxygen Sensor (O2 sensor) Specifications:

Sensor Technology	Micro Fuel Cell
Signal Output¹	530 - 1050 uA
Measuring Range	0 - 10 PPM (Min) 0 - 10000 PPM (Max)
Response Time T90	7 Seconds
Accuracy Full Scale²	± 1% of Signal
Repeatability F.S.	±0.5%
Temp Coefficient	2.54 % /oC
Operating Temp	0 to 50oC
Storage Temp	0 to 45oC
Recommended Flow	0.5 - 5 SCFH
Humidity	0 - 100% RH (Non - Condensing)
Expected Life³	17 - 25 Months
Storage	6 Months
Warranty⁴	12 Months
PCB Connection	Center Foil Negative Outer Foil Positive

For use in CO2 applications
1. Signal output is measured in air at 25°C, sea level.
2. Accuracy full scale is calculated with constant pressure and temperature & proper calibration (90% O2 value on full scale range). Drastic Temperature change can result in a maximum error of ± 10%
3. Expected life is calculated when O2 < 1000 ppm @ 25°C, Sea Level.
4. Southland Sensing warrants these sensors for the period noted above to be free from defects in materials and workmanship. Southland Sensing will not be held liable for sensors damaged due to customer neglect.
