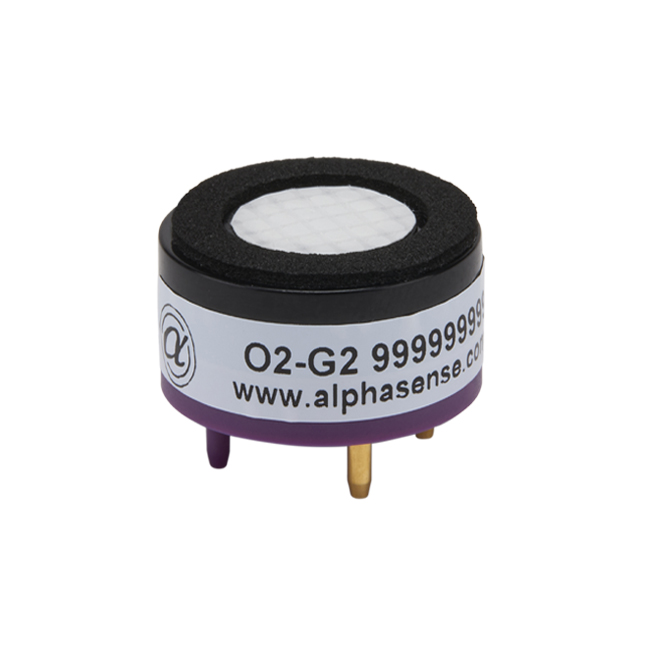

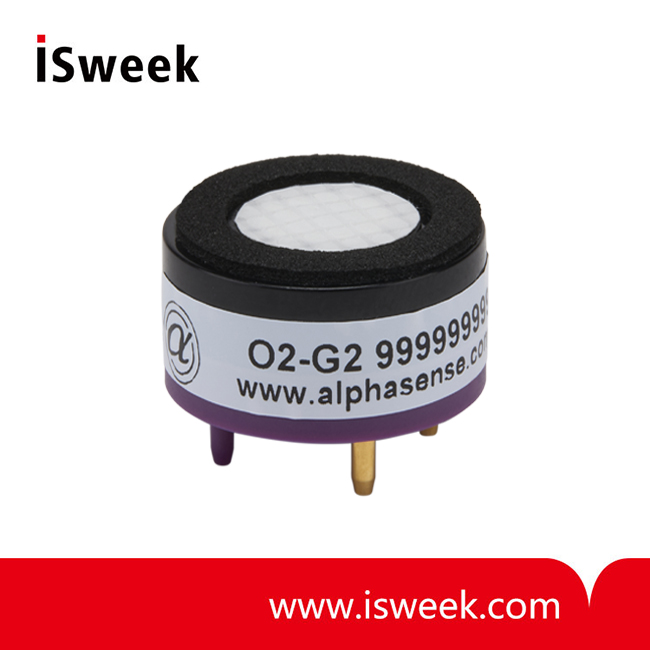

Miniature Size Oxygen Sensor (O2 Sensor) - O2-G2

? Output: 30 to 42 μA @ 22℃, 20.9% O2
? Response time t90: < 20 (s) from 20.9% to 0% O2 (47Ω)
? Temperature range : -30 to 55 ℃
? Pressure range: 80 to 120 kPa
? Humidity range: 5 to 95 % rh continuous
? Storage period: 6 months @ 3 to 20℃
? Load resistor: 47 to 100 Ω (recommended)
? Weight: < 7 g

Model Number: O2-G2
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

O2-G2 Oxygen Sensor (O2 Sensor) Description
Alphasense Oxygen sensors use capillary flow control.
Unlike partial pressure oxygen sensors, they have good pressure and temperature dependence, making them the best choice in safety applications.

Standard galavanic sensors use lead for greatest reliability but fixed lifetime.

O2-G2 Oxygen Sensor size:
Miniature, proven long-term performance. The sensors are designed for the next generation of portable gas detectors. Part of the Alphasense ‘D‘ family.

O2-G2 Oxygen Sensor (O2 Sensor) Key Features & Benefits:
Small Footprint
Reduced Height
Low Weight
Good Connectivity: Uses industry standard, low cost, Molex sockets for direct board insertion.
Reduced Costs: High quality design with a significant reduction in the cost per measured gas, allied to reduced manufacturing costs are passed on to OEMs

O2-G2 Oxygen Sensor (O2 Sensor) PERFORMANCE
Output	μA @ 22℃, 20.9% O2	30 to 42
Response time	t90 (s) from 20.9% to 0% O2 (47Ω)	< 20
Zero current	μA @ 99.99% N2 , 22℃	< 2.5

O2-G2 Oxygen Sensor (O2 Sensor) LIFETIME
Output drift	% change in output @ 3 months	< 2
Operating life	months until 85% original output in 20.9% O2	> 24

O2-G2 Oxygen Sensor (O2 Sensor) ENVIRONMENTAL
Humidity Sensitivity	% O2 change: 0% to 95% rh @ 40℃	< 0.7
Pressure sensitivity	(% change of output)/(% change of pressure) @ 20kPa	< 0.1
CO2 sensitivity	% change in output / % CO2 @ 5% CO2	< 0.1
Output at -20℃	% output/output at 20℃ in 20.9% O2	87 to 93
Output at +50℃	% output/output at 20℃ in 20.9% O2	103 to 107

O2-G2 Oxygen Sensor (O2 Sensor) KEY SPECIFICATIONS
Temperature range	℃	-30 to 55
Pressure range	kPa	80 to 120
Humidity range	% rh continuous (0 to 99% rh short term)	5 to 95
Storage period	months @ 3 to 20℃ (store in sealed pot)	6
Load resistor	Ω (recommended)	47 to 100
Weight	g	< 7
