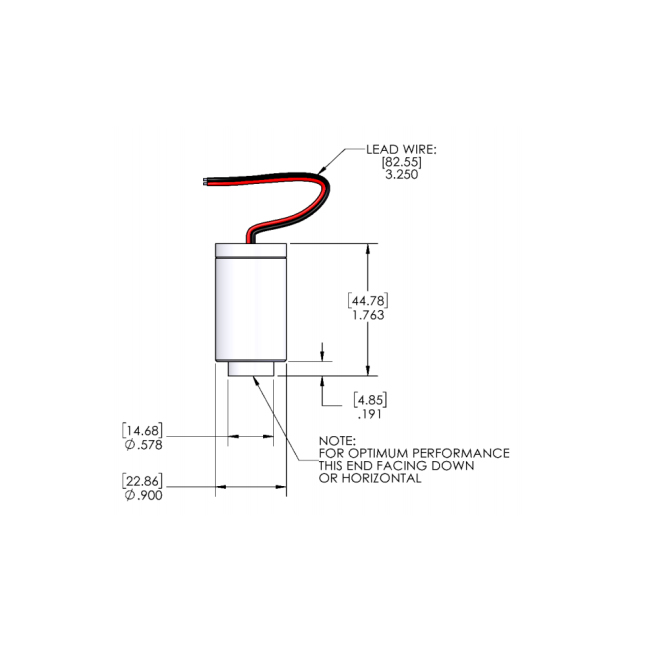

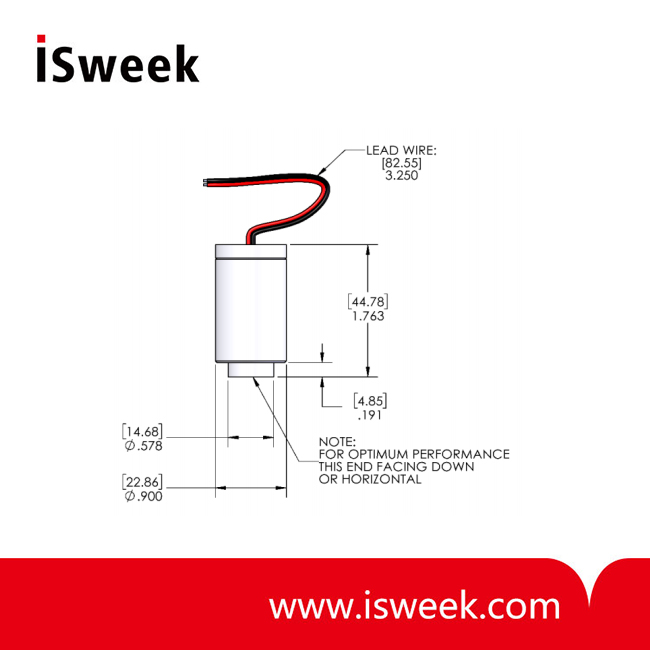

Long-life Electrochemical Oxygen Sensor O2 Sensor - XLT-11-75-KE25

A range of 0 to 100%

Model Number: XLT-11-75-KE25

Quantity:: - +

Mouse over image to zoom

Product Specification

Long-life electrochemical oxygen sensor and O2 sensor XLT-11-75-KE25 application:

With a measurement range of 0-100%, it is applied to anesthesia machines, oxygen analyzers, ventilators, etc

Long-life electrochemical oxygen sensor O2 sensor XLT-11-75-KE25：

Replace the sensor for :KE-25

Long-life electrochemical oxygen sensor O2 sensor XLT-11-75-KE25 Specification：

Measuring Range	0-100% O2
Accuracy FS Over Operating Range	+ 5%
Signal Output	10 - 15.5 mV
Accuracy Full Scale	+ 1%
Response Time 90%	13s
Drift % Signal Month	< 1%
Linearity	+ 1%
Temperature Coefficient	Compensated
Operating Temperature	0 to 40°C
Storage Temperature	5 to 25°C
Recommended Storage	6months
Operating Pressure	Constant 5-30 PSIG
Humidity Non-Condensing	10-99%RH
Expected Life	36months
Flow Rate	1-10 LPM
Warranty	12months
Electrical Connections	3.250" Wires
Packaging	Polyetylene bag in 3" x 3" x 1.5" paper box

(1) In air @ 25° C and 1 atm. Expected life varies inversely with changes in O2 concentration, temperature, pressure.

(2) Under constant conditions. Calibrate as near sample conditions as possible. Calibrate with 95-100% oxygen for measurements > 40% oxygen.

(3) Once the signal output stabilizes following a step change in temperature.

(4) Recommended 5-35° C. Sensors may be stored at -10 to 55° C on an intermittent basis only.

(5) Ex-factory unless agreed to in writing. Under normal application conditions sensor is warranted to be free of defects in material and workmanship for the period specified above proved the sensor is properly installed and operated. Analytical Industries Inc. shall not be liable for buyer's negligence,

misapplication, alteration or abuse. The sole remedy for a sensor determined to be defective by Analytical Industries Inc. is limited to replacing the defective sensor.
