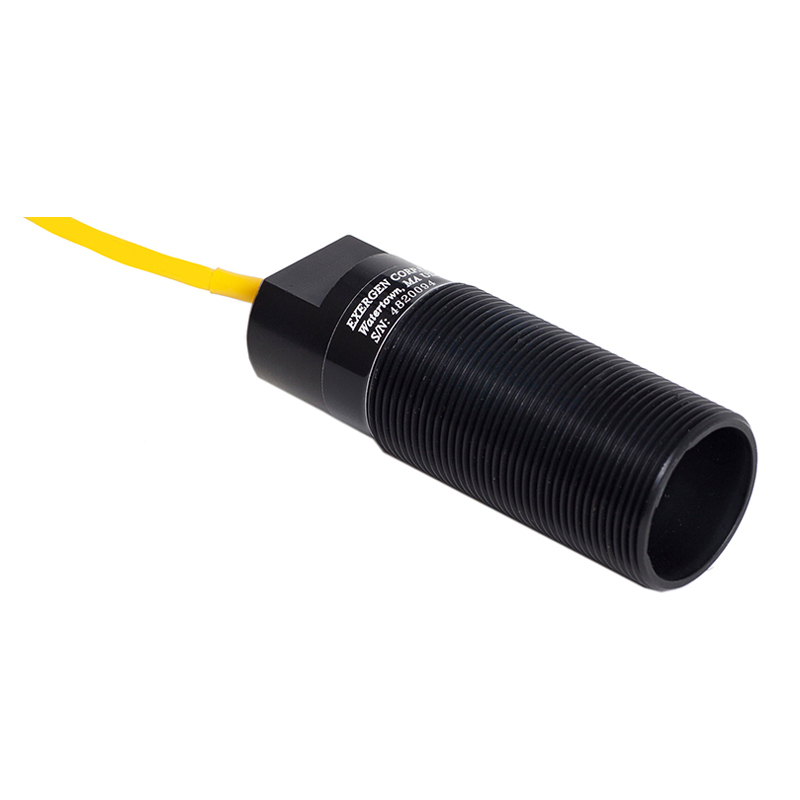

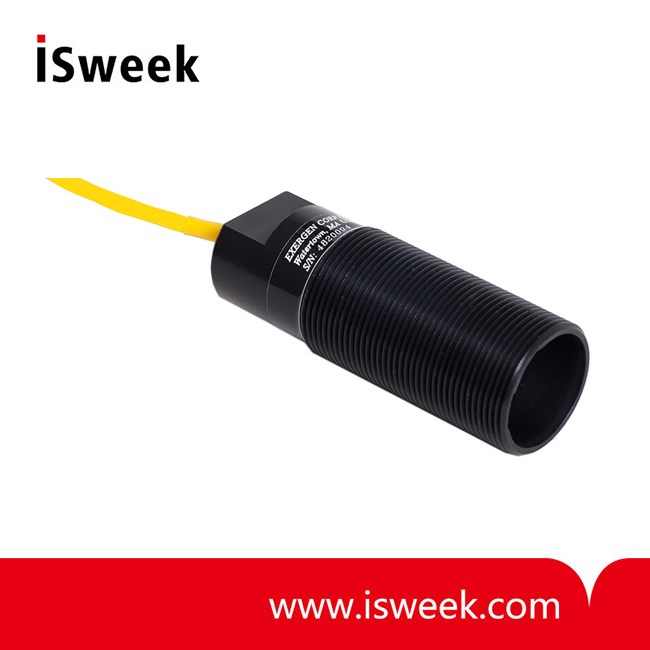

Infrared Temperature Sensors - IRt/c.07

? Sensing Range: -50 to 550°F (-45 to 290°C)
? Ambient Temperature: -4 to 158°?F (-20 to 70°C)
? Field of View: approximately 7:1 (8°)
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0001°C
? Minimum Spot Size: .75" (19mm)
? Spectral Response: 6.5 to 14μm
? Output Impedance: 3.5 to 14 Kohms approx
? Response Time: 100 Milliseconds

Model Number: IRt/c.07
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

IRt/c.07 Infrared Temperature Sensors Features:
? Infrared Thermocouple IRt/c
? Non-contact
? Self-powered
? Intrinsically Safe
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0001°C
? Small Size

IRt/c.07 Infrared Temperature Sensors Technical Data

Sensing Range	-50 to 550°F (-45 to 290°C)
Ambient Temperature Range	-4 to 158°F (-20 to 70°C)
Optimum Range Selections	Eight models per t/c type (see Temperature Selection Chart)
Field of View	approximately 7:1 (8°)
Minimum Spot Size	.75" (19mm)
Spectral Response	6.5 to 14μm
Output Impedance	3.5 to 14 Kohms approx
Response Time	100 Milliseconds
Dimensions	3.25" x 1.18" Dia. (82.5 x 29.97mm), M30 x 1.5 thread
Housing	ABS Black Plastic, hermetically, exceeds NEMA 4X; IP67
Cable	3 feet of unshielded, duplex insulted, type K, 24 AWG, PFA jacket rated to 392°F (200°C) (Shielded cale avialable upon request)
Weight	2.3oz. (65 grams) with cable
