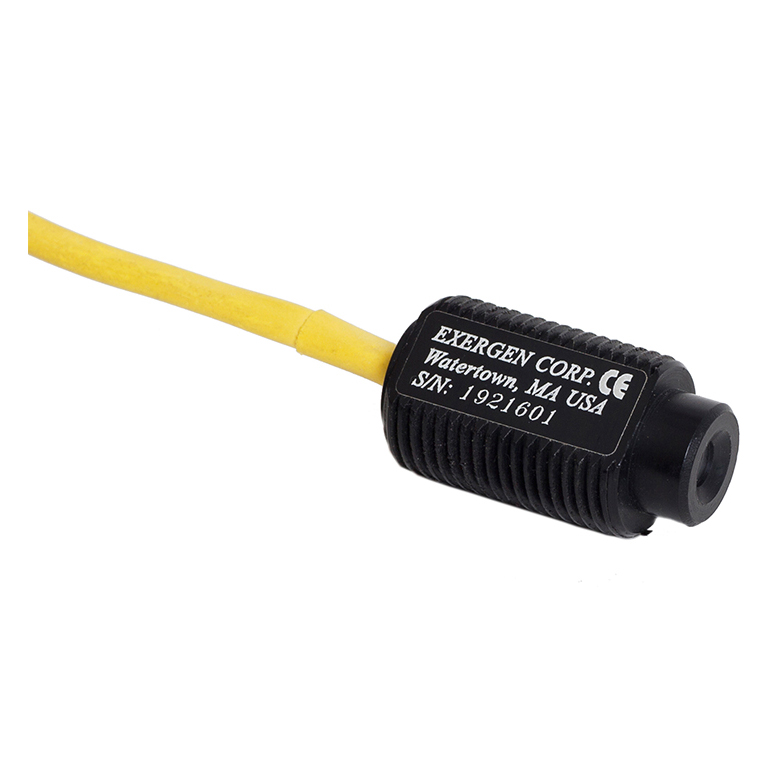

Infrared Temperature Sensors - IRt/c.03

? Sensing Range?: -50 to 550°F (-45 to 290°C)?
? Ambient Temperature Range?: 0 to 160°F (-18 to 70°C)?
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0001°C
? Field of View?: approximately 3:1 (17°)?
? Minimum Spot Size?: .25" (6mm)?
? Spectral Response?: 6.5 to 14μm?
? Output Impedance?: 4 to 8 Kohms approx?
? Response Time?: 100 Milliseconds?

Model Number: IRt/c.03
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

IRt/c.03 Infrared Temperature Sensors Features:
? Infrared Thermocouple IRt/c
? Non-contact
? Self-powered
? Intrinsically Safe
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0001°C
? Small Size

IRt/c.03 Infrared Temperature Sensors Technical Data

Sensing Range	-50 to 550°F (-45 to 290°C)
Ambient Temperature Range	0 to 160°F (-18 to 70°C)
Optimum Range Selections	Eight models per t/c type (see Temperature Selection Chart)
Field of View	approximately 3:1 (17°)
Minimum Spot Size	.25" (6mm)
Spectral Response	6.5 to 14μm
Output Impedance	4 to 8 Kohms approx
Response Time	100 Milliseconds
Dimensions	1.28" x .71" Dia. (32.5 x 20mm)
Housing	High strength ABS, hermetically sealed, exceeds NEMA 4,4X; IP65, 67, intrinsically safe. Two locknuts supplied
Cable	Thermocouple extension grade, PVC jacket, unshielded
Weight	1.4oz. (40 grams) with cable
