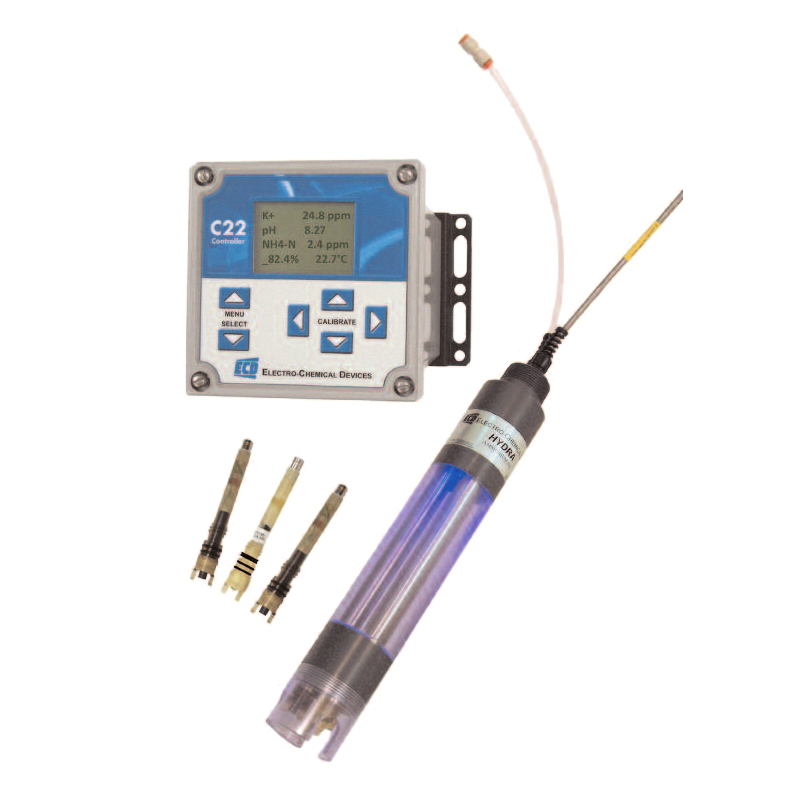

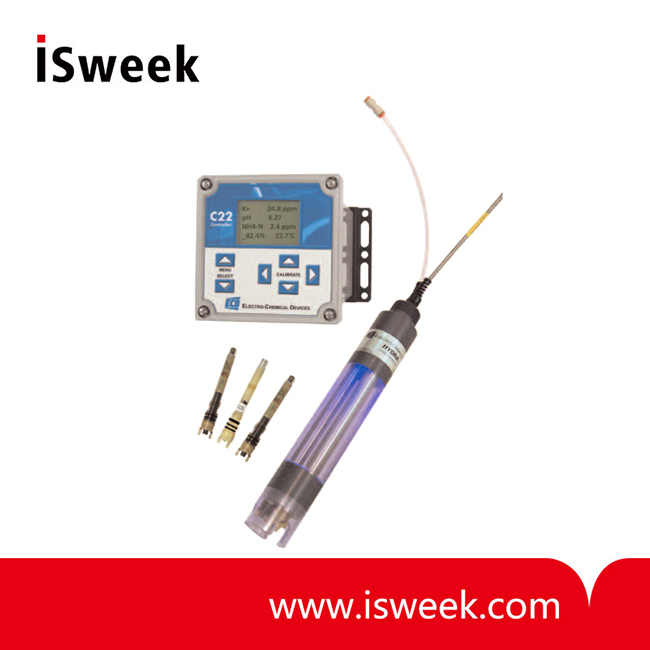

HYDRA Ammonium Analyzer - HYDRA NH4-N

? NH4+-N? Measurement:? 0.01 to 14,000 ppm
? ?Potassium Measurement:? 0.01 to 40,000 ppm?
? pH Measurement:?0 to 14 pH?
? Temperature Measurement: 0°C to 100°C (32°F to 212°F)
? Operating Temperature: 0°C to 50°C (32°F to 122°F)
? Response Time: T90 1 minute

Model Number: HYDRA NH4-N
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

HYDRA NH4-N Ammonium Analyzer Description
The HYDRA^? Ammonium Analyzer measures the concentration of dissolved ammonium as nitrogen (NH4⁺-N) in water. The sensor uses three electrodes to determine the NH4⁺-N concentration, an Ammonium Ion Electrode, a Potassium Ion Electrode and a pH Electrode. It is designed for use in all kinds of water. Typical applications include monitoring environmental waters, lakes, streams and wells as well as wastewater treatment in aeration basins and effluent.

The Ammonium Ion Electrode provides the primary measurement. Any potassium ion in the sample generates a positive interference in the measurement, due to its similar size and charge to the ammonium ion. A Potassium Ion Electrode measures the amount of potassium ion present in the sample and HYDRA C22 Analyzer subtracts the appropriate amount of signal from the Ammonium Measurement.

HYDRA NH4-N Ammonium Analyzer Features
? Ammonium ISE electrode
? K⁺, pH and Temp. electrodes
? Rugged PVC design
? Integral Spray Head Cleaner
? Internal Signal Conditioning

HYDRA NH4-N Ammonium Analyzer Benefits
? Fast and Accurate Ammonium
? Measurement NH4⁺ or NH4⁺-N
? Fully compensated for pH, K⁺ interferences & Temperature
? Removable electrode guard for easy maintenance
? Clean sensor in situ with pressurized water or air
? Amplified signals allow up to 200 meters between Sensor and Analyzer

HYDRA NH4-N Ammonium Analyzer Specifications

Sensor
Sensor	Three Electrode system with spray cleaner, Ammonium ISE (NH4+-N) is the primary measurement. The Potassium ISE and pH glass electrodes are used to compensate the NH4+ signal. The Sensor is waterproof with an ingress rating of IP 68.
Measurement Range	NH4⁺-N: 0.1 to 14,000 ppm
Operating Temperature	0°C to 50°C (32°F to 122°F)
Min/Max Flow Rate	Minimum 0.1 m/s Maximum 3.0 m/s
We&ed Materials	PVC, PES, PVDF, PTFE, Viton, Glass, 316 SS
Accuracy	± 3% of reading, dependent on Calibration
Response Time	T90 1 minute
Electrode Life	ISEs: 4- 6 months, typical pH electrode: 6-12 months, typical
C22 Analyzer
Measurements
Ammonium:	0.01 to 14,000 ppm as NH4⁺-N
Potassium:	0.01 to 40,000 ppm
pH:	0 to 14 pH
Temperature:	0°C to 100°C (32°F to 212°F)
Compensation
pH:	4 - 10 pH
Potassium:	0.1 to 1000 ppm
Display	2.5" X 1.75" backlit LCD, 4 lines of Text & Graphical
Enclosure	NEMA 4X, L x W x D: 5.7" x 5.7" x 7
Outputs	(2) 4-20 mA maximum load 800 ohms @ 24 VDC Configured: 0.1 to 20 mg/l NH4⁺-N; 0 - 14 pH Optionally up to (4) 4-20 mA outputs*
Input Power	110/220 VAC @ 50/60 Hz
Alarm Relay Ra%ngs	(2) SPDT 230 VAC/5A or 30 VDC/5A resistive max. Relay(1) Spray Cleaner, Relay(2) Alarm Optionally up to (8) Relays*

Part No.	Model and Product Description
1290030-1	HYDRA^? NH4-N Sensor, complete, NH4, K⁺, pH, Temp, Spray Cleaner head and 30 #. cable
1290030-2	HYDRA^? NH4-N Sensor, complete, NH4, pH, Temp, Spray Cleaner head and 30 #. cable (No K⁺ Sensor)
16KA2221.K100	HYDRA^? C22 NH4-N Analyzer, K⁺ compensated, (2) 4-20 mA output, 0.1 - 20 ppm NH4-N and (2) relays*
16KA2221.J100	HYDRA^? C22 NH4-N Analyzer, (2) 4-20 mA output, 0.1 - 20 ppm NH4-N and (2) relays* (No K⁺ compensation)

Part No.	Spare Parts and Accessories Description
2005083.VIT	Ammonium Electrode Cartridge (recommended spare)
2005034.VIT	Potassium Electrode Cartridge (recommended spare)
2005145.VIT	pH Electrode Cartridge (recommended spare)
3300854-1	Replacement Spray Nozzle
3501050-1	PVC Front Sensor Guard
2010445-1	Ammonium Calibration solution, NH4-N 1 ppm
2010446-1	Ammonium Calibration solution, NH4-N 100 ppm
2010443-1	Potassium Calibration solution, 1 ppm
2010444-1	Potassium Calibration solution, 100 ppm
2010100	pH 4 Buffer Calibration solution
2010101	pH 7 Buffer Calibration solution
1000300-1	4-20 mA USB Data Logger
