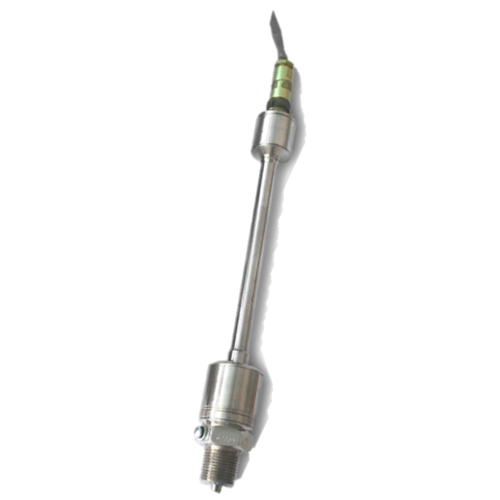

High-temperatur Gage Pressure Microelectronic Transducer 0~160MPa, -40℃~+300℃ - MIDA-TG-52

wide pressure range(0~160MPa)
wide temperature range (-40℃~+300℃), low temperature error
high accuracy, high stability
cost-effective
Accuracy: ≤ ±0,25%; ≤ ±0,5%
Supply voltage: 5 - 15 V

Model Number: MIDA-TG-52

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

High-temperatur Gage Pressure Microelectronic Transducer 0~160MPa, -40℃~+300℃

MIDA-TG-52

Features:

wide pressure range(0~160MPa)
wide temperature range (-40℃~+300℃), low temperature error
high accuracy, high stability
cost-effective

Application:

specially for electric submersible pump and oilfield downhole pressure gauge

industrial process pressure control

aviation and aerospace fields

navigation and shipbuilding industry

petroleum and chemical industry

power plant and nuclear power plants

electrical submersible pump corollary equipment

Specification

Applicationsy	Industrial instrumentation & process control systems
Measured medium	Fluids and gases compatible with titanium alloys and stainless steels
Standard ranges, MPa	0-0,01 … - 0-160
Accuracy (comb. L.H.R),no more than, ±%	0,25; 0,5
Zero output, ±m(xù)V/1 V of supply voltage	0,1 (for 0,25%); 0,2 (for 0,5%)
Output range, mV / V	5,0+0,2 (3,0+0,2 for 0,01 MPa; 10+0,2 by special request)
Operating temperature range, ℃	-40 ... +300
Compensated temperature range, ℃	+10…+100; +50…+150; +100…+200; +150…+250; +200…+300
Additional error within compensated temperature range, no more than, %: of zero output of output range	1,5 (for 0,25%); 2,5 (for 0,5%) 1,5 (for 0,25%); 2,5 (for 0,5%)
Supply voltage, V	5 - 15
Input and output resistance, kOhm	Rвх ≥4; Rвых ≤7
Overload, no more than	1,5Рnom (<40 MPa), и 1,25Pnom(>40 MPa)
Insulation resistance(at temperature of 25 ℃), not less than	100 MOhm at 100 V

Overall and mounting dimensions

Temperature at A-zone is up to plus 300 ℃
Temperature at B-zone is up to plus 85℃

Type	Pnom, MPa	L, mm (max)	L₁ , mm (max)	A, mm (max)	Picture
MIDA-TG-52 With cable (C)	0,04; 0,06	231 (M20) 221 (M12)	69 (M20) 59 (M12)	137 (M20) 127 (M12)	2; 1; 2
MIDA-TG-52 With cable (C)	From 0,1 up to 160 (M20) From 0,1 up to 25 (M12)	233 (M20) 223 (M12)	72 (M20) 62 (M12)	140 (M20) 130 (M12)	3; 1; 3

Type	Pnom, MPa	L, mm (max)	L₁ , mm (max)	A, mm (max)	Picture
MIDA-TG-52 With plug/socket (P)	0,04; 0,06	240 (M20) 230 (M12)	69 (M20) 59 (M12)	137 (M20) 127 (M12)	2; 4 1; 2; 4
MIDA-TG-52 With plug/socket (P)	From 0,1 up to 160 (M20) From 0,1 up to 25 (M12)	242 (M20) 232 (M12)	72 (M20) 62 (M12)	140 (M20) 130 (M12	3; 4 1; 3; 4
