EED/HERO Signal Conditioner - FPI-HS/HE

? Temperature measuring range: 0°C to 120°C
? Minimum current detected on MK1 squib: <5 mA
? Resolution: <1 mA
? Response time of bare sensor: <1 millisecond?
? Sampling rate: Up to 15 kHz per module5?
? Power consumption: 5 Watts?
? Analog output: 0 to 5V (16 bits resolution)?
? Operating temperature: 10°C to 50°C?

Model Number: FPI-HS/HE
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

HERO Application (HS/HE)

FPI-HS/HE EED/HERO Signal Conditioner Application Products
? FOT-HERO Sensor

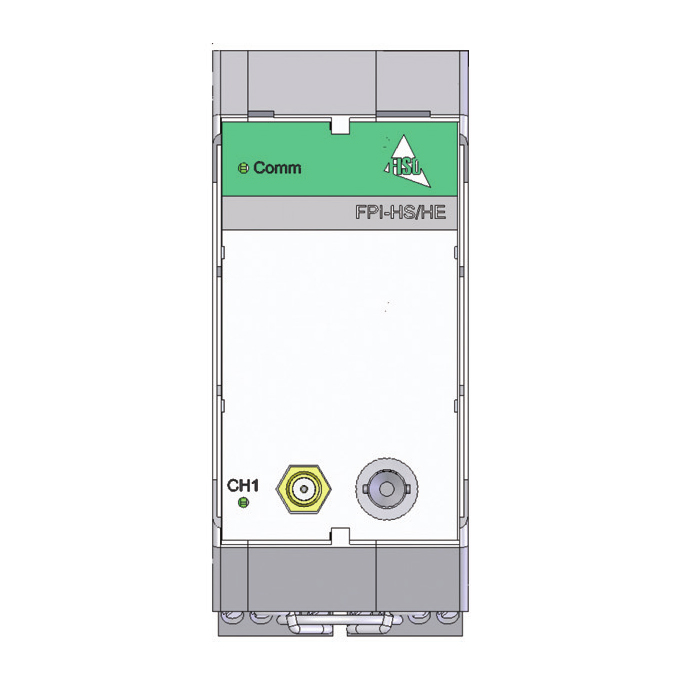

? FPI-HS/HE module

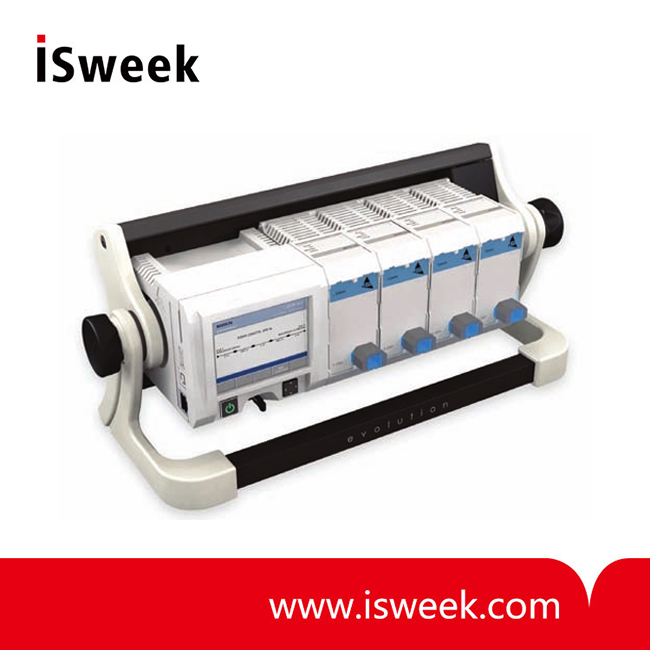

? EVOLUTION chassis

FPI-HS/HE EED/HERO Signal Conditioner Key Features
? Absolute measurement
? Sensor signal diagnostic
? Compatible with FOT-HERO
? Sustain multiple connections, strong bending and vibration of the fi bers and extensions
? Sensor maintains calibration with any extension length
? Temperature-compensated modules

FPI-HS/HE EED/HERO Signal Conditioner Specifications

	FOT-HERO
Temperature measuring range	0°C to 120°C
Minimum current detected on MK1 squib	<5 mA
Resolution^1,2	<1 mA
Response time of bare sensor^3,4	<1 millisecond
Sampling rate	Up to 15 kHz per module⁵
Power consumption	5 Watts
Analog output	0 to 5V (16 bits resolution)
Operating temperature	10°C to 50°C
Storage temperature	-30°C to 80°C
Connector	ST
Fiber core size	100/125μm
Number of channel	1
Communication / Evolution chassis	USB
Communication/OEM	RS-232 / RS-485
LED sensor signal and communication diagnostic	Ye

1. Corresponding accuracy in milliamps is relative to the EED under test and has to be determined by an experimental test.
2. Based on MK1 squib, performance is related to system averaging.
3. Based on MK1 squib, 60 milliseconds, defi ned as the ratio of energy and power which produces the same peak output.
4. Based on MK1 squib, 275 milliseconds, defi ned as the rise time (10% to 90%) of the output.
5. Bandwidth up to 1.6kHz
