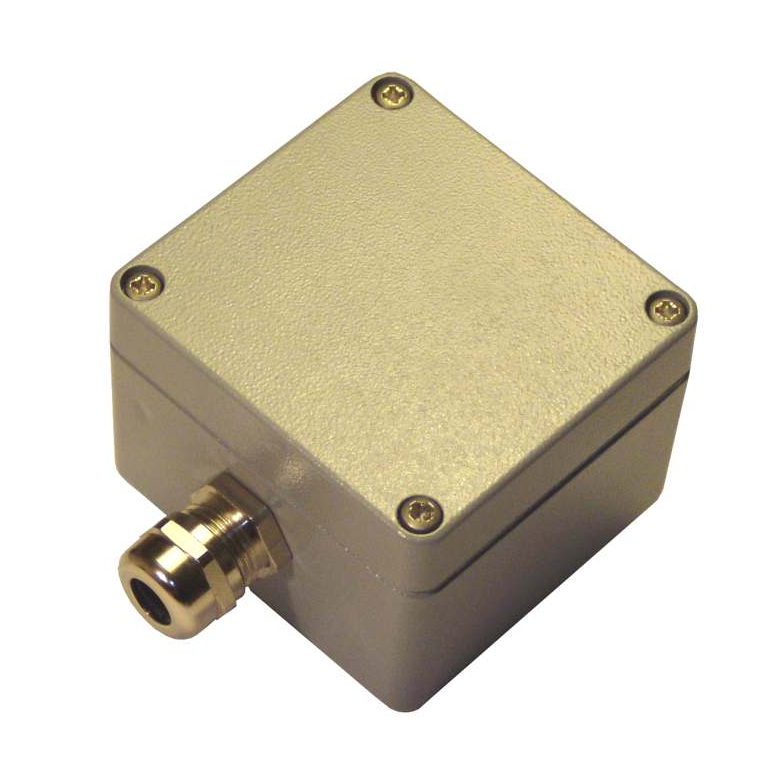

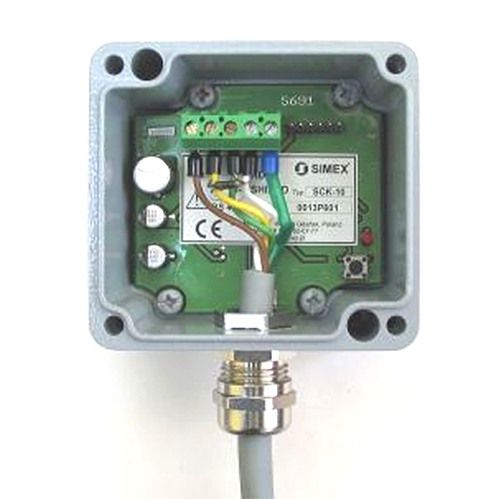

Dual Axis Inclinometer Module - SCK-11

? Power supply?: 10 - 36V DC?
? Measurement range?: ±70 deg. in relation to earth?
? Protection level?: IP 67?
? Weigh?t: 350 g?
? Two measurement channels
? ?Build-in temperature sensor
? Resistance for mechanical damages
? ?Aluminium housing

Model Number: SCK-11
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

SCK-11 Dual Axis Inclinometer Module Description
The dual axis inclinometer module SCK-11 was designed to stationary measurements of inclinations of two orthogonal axes in relation to earth. Recommended range of measured angles maintains from -70 to +70 deg. Due storing of new scaling values to internal registers it is possible to change measurement unit and resolution to any other linear. Build in offset registers allows user to measure relative angles and self zeroing after mounting. In addition to two registers containing information about SCK-11 installation plane angle relative to the earth (two angles with the offset function), threre are available additional two records containing information on the accelerations in the same axes, what makes measurement of transducer movement more precision.

SCK-11 Dual Axis Inclinometer Module Features
- Two measurement channels,
- Build-in temperature sensor,
- Resistance for mechanical damages,
- Aluminium housing.

SCK-11 Dual Axis Inclinometer Module Applications
Possible application fields:
- Industry and farming
- Position control equipement
- Measurement systems of lifts etc.

SCK-11 Dual Axis Inclinometer Module Technical data

Power supply	10 - 36V DC
Current consumption	during operation - typically 12 mA @ 24V DC during Modbus transmission - up to 60 mA
Angle detector	MEMS
Measurement channels (axes)	2
Measurement range	±70 deg. in relation to earth
Measurement unit	any (factory scaled to degrees)
Measurement resolution	from 0,001 to 1, user configured
Measurement accuracy	±30 deg. (better than 0,2%; max. error 0,05 deg. @25°C) ±70 deg. (better than 0,5%; max. error 0,2 deg. @25°C)
Nonlinearity	±0,1%
Recommended maximum gravity measurement range	±1,5G (1G = gravitational acceleration of earth)
Acceleration unit and resolution	0,001 G
Communication interface	RS 485, 8N1 / Modbus RTU, not separated, baud rate 1200 bit/s ÷ 115200 bit/s
Compensation range	-40°C ÷ 85°C
Operation temperature	recommended -30°C to +60°C; max. -40°C to +85°C
Vibration frequency	higher than 10Hz
Protection level	IP 67
Case type	wall mounted
Case material	aluminium
Mounting	to wall, 2 M3 bolts
Dimensions	without glands 75 x 80 x 57 mm, with glands 100 x 80 x 57 mm
Weight	350 g
