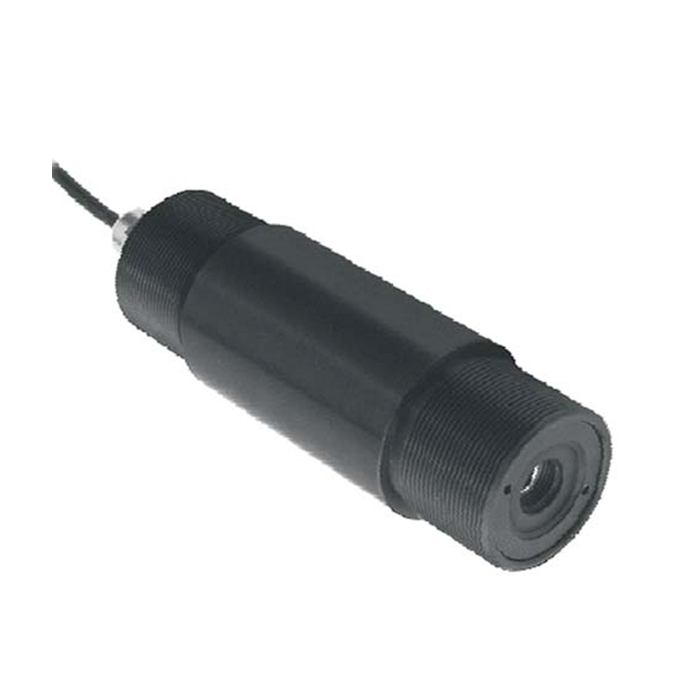

Digital Two-wire Loop Powered Infrared Temperature Sensor - PSC-CX

? Temperature range (scalable via software): -30 - 900°C?
? Spectral range: 8 -14μm?
? Optical resolution: 22:1?
? CF-Optics (optional): 0.6mm @10 mm?
? Outputs/analog: 4 - 20 mA?
? Environmental rating: IP 65 (NEMA-4)?
? Ambient temperature: -20 - 75°C?
? Relative humidity: 10-95%, non condensing?

Model Number: PSC-CX
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

PSC-CX
Digital, two wire, loop powered infrared temperature sensor for OEM applications

PSC-CX Infrared Temperature Sensor Description
The PSC-CS self-Contained, 2-wire loop powered IR temperature sensor with 4-20 mA output features:
? High-performance, great value
? Simple 2-wire installation
? Wide range of -30°C to 900°C (adjustable with PSC Connect Software)
? Optical resolution of 22:1
? Optional USB programming interface
? Alarm output (0-30 V / 500 mA)
? Real-time 2-wire output and digital communication
? Versatile power requirements: 5-30 VDC

PSC-CX Infrared Temperature Sensor Specifications

General Specifications
Environmental rating	IP 65 (NEMA-4)
Ambient temperature	-20 - 75°C
Storage temperature	sensing head: -40 - 85°C
Relative humidity	10-95%, non condensing
Vibration	IEC 68-2-6: 3 G, 11-200 Hz, any axis
Shock	IEC 68-2-27: 50 G, 11ms, any axis
Weight	350 g
Electrical Specifications
Outputs/analog	4 - 20 mA
Output/Alarm	0-30 V/ 500 mA (open collector)
Outputs/digital (optional)	USB
Loop impedances	max. 1000 Ω
Cable length	8 m
Power supply	5 - 30 V DC
Measurement Specifications
Temperature range (scalable via software)	-30 - 900°C
Spectral range	8 -14μm
Optical resolution	22:1
CF-Optics (optional)	0.6mm @10 mm
System accuracy (at ambient temperature 23±5°C and object temperture >20°C)	±1% or ±1.4°C
Repeatability (at ambient temperature 23 ±5°C and object temperture >20°C)	±0.5% or ±0.7°C
Temperature resolution	0.1°C
Exposure time (90% signal)	150ms
Emissivity/Amplification (adjustable via soft-ware)	0.100 - 1.100
Transmissivity (adjustable via software)	0.100 - 1.000
Signal processing (parameter adjustable only via softwre)	peak hold, valley hold, average; extended hold function with threshold and hysteresis
