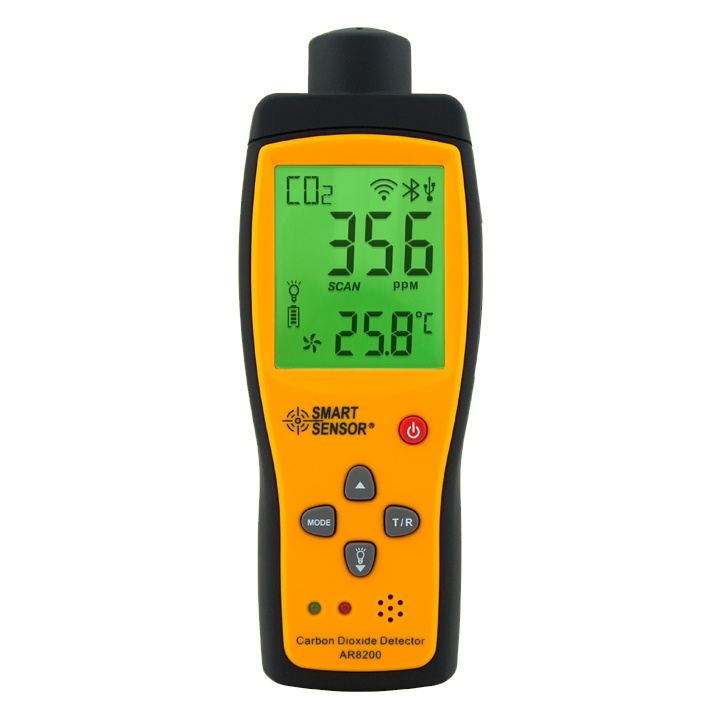

Carbon Dioxide Detector CO2 Detector - AR8200

? Gas Type: Carbon Dioxide (CO2)
? Measuring range: 0 to 5000ppm
? Resolution: 1ppm
? Measuring Principle: Optics
? Display: Large LCD Display
? Operation Tempearture: -10°C ~ 60°C
? Operation Humidity: 0 to 99.9% RH
? Power supply: 3 x 1.5V AA battery
? Size: 182*66*32(mm)

Model Number: AR8200
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

AR8200?Carbon Dioxide Detector CO2 Detector?Introduction
This Carbon Dioxide detector can detect the Carbon Dioxide content between the 0~5000ppm and shows the Carbon Dioxide volume with an LCD.

The product features:
??As it uses the imported Carbon Dioxide sensor, it is very precise and its performance is stable.
??It uses the intellectualized design and has gotten multiple functions.
??With highlight backlight display and acoustic-optic alarming, it is easily configured.
??The embedded temperature compensation can make the meter measuring the correct value in the environment temperature of -10~40℃.
??As its case is ergonomically designed, it looks handsome, feels good and is easy to carry.

AR8200?Carbon Dioxide Detector CO2 Detector Applications:
??Carbon Dioxide manufacturing workshop
??Petroleum refining and petrochemical plants
??Carbon Dioxide content detecting in trains and automobiles
??Carbon Dioxide content detecting in minerals
??Carbon Dioxide content detecting during mountain climbing and in sealed place
??Other industries and plants using Carbon Dioxide.

AR8200?Carbon Dioxide Detector CO2 Detector?Technical Features

Function	Range	? ? ?Resolution ? ??	Accuracy
CO2	? ? 0 to 5000ppm ? ?	1ppm	± 50ppm?± 5%rdg
CO2	Pressure dependence:?±1.6% reading per kPa deviation from normal pressure, 100kPa
Tempearture	-10 to 60°C 14 to 140°F	0.1°	±0.6°C/0.9°F
Humidity	0.0 to 99.9%	0.1%	±3%(10 to 90%) ±5%(< or > 10 to 90%)
Wet Bulb	-5 to 60°C 23 to 140°F	0.1°	Calculated from RH and Temperature
Dew Point	-20 to 60°C -4 to 140°F	0.1°	Calculated from RH and Temperature

??Over measurement range display: --OL--
??Alarming method: acoustic-optic alarming
??Working principle of the sensor: electrochemical sensor
??The service life of the sensor: 2years(it can be replaced)
??Power supply: 3 x 1.5V AA battery
??Battery service life: about 100 hours of continuous use (when the backlight is off).
??Size: 182*66*32(mm)
