Canister Load Cell - 106BH
? Material: Alloy steel
? Rated Capacities: 100t, 200t, 500t
? Full Scale Output: 2mV/V ± 20%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP67
? CE and RoHS certified
? Measurement Ukraine certified
- Model Number: 106BH
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom

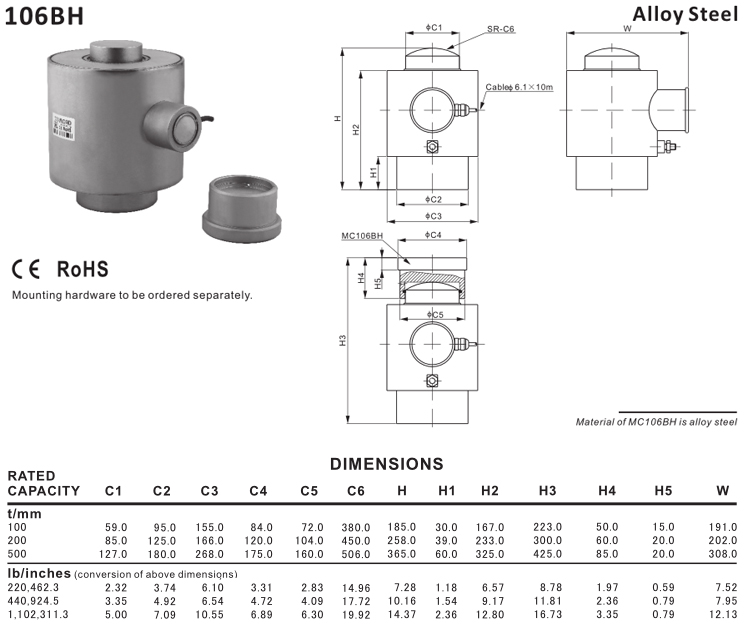

Product Specification

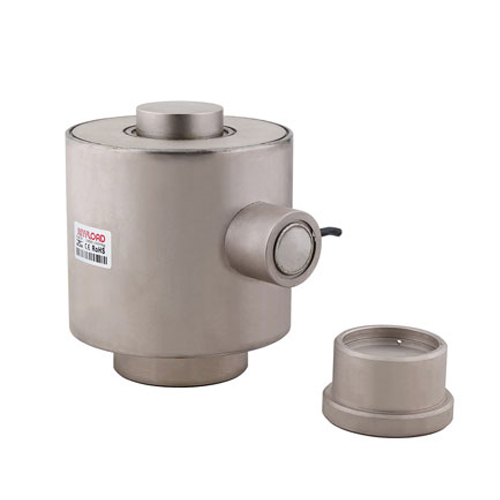

106BH Canister Load Cell
106BH Canister Load Cell Features
? Material: Alloy steel
? Rated Capacities: 100t, 200t, 500t
? Full Scale Output: 2mV/V ± 20%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP67
? CE and RoHS certified
? Measurement Ukraine certified
106BH Canister Load Cell Specification
|
Full Scale Output |
2.0 mV/V ±0.25% |
|
Zero Balance |
±0.02 mV/V |
|
Non-linearity |
<±0.050% |
|
Repeatability |
<±0.017% |
|
Hysteresis Error |
<±0.030% |
|
Creep in 30 min. |
<±0.023% |
|
Input Resistance |
770Ω±30 |
|
Output Resistance |
700Ω±5 |
|
Element Material |
Alloy Steel, Nickel Plated |
|
Recommended Excitation |
10V (15V Maximum) |
|
Insulation Resistance |
>2 [50V DC] GΩ |
|
Compensated Temperature Range |
-10°C to 50°C / 14°F to 122°F |
|
Safe Overload |
150% of full scale |
|
Breaking Overload |
300% of full scale |
|
Seal Type / IP Rating |
Welded Sealed / IP67 |
|
Cable Color Code |
Exc+ Red Exc- Black Sig+ Green Sig- White Shield Bare |
106BH Canister Load Cell Part Number
|
Load Cell |
||
|
Rated Capacity |
Part No. |
Shipping Weight (kg) Approx. |
|
100t |
106BH-100t |
9.6 |
|
200t |
106BH-200t |
25.0 |
|
500t |
106BH-500t |
77.0 |
|
Mounting Hardware |
|||
|
Mounting Hardware |
Load Cell Capacity |
Part No. |
Shipping Weight (kg) |
|
Mounting Cap |
100t |
MC106BH-100t |
1.4 |
|
|
200t |
MC106BH-200t |
3.6 |
|
|
500t |
MC106BH-500t |
11.3 |
