XL-MaxSonar-EZL0 High Performance Ultrasonic Rangefinder - MB1260

? Resolution of 1 cm
? 10Hz reading rate
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Virtually no dead zone, objects closer than 25 cm range as 25 cm
? Operates from 3.3-5.5V
? Low 3.4mA average current requirement
? Operational Temperature from 0℃ to +65℃ (32℉ to +149℉)
? Maximum range of 1068 cm (420 inches)

Model Number: MB1260
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MB1260 XL-MaxSonar-EZL0
High Performance Ultrasonic Rangefinder

MB1260 XL-MaxSonar-EZL0 Ultrasonic Rangefinder Product Description

The XL-MaxSonar-EZL0 offers the widest and most sensitive beam pattern of any indoor sensor we currently offer. This makes the XL-MaxSonar-EZL0 an excellent choice wherever wide beam detection, reliable people detection, or reliable small obstacle detection are required. In addition to detecting small objects, the XL-MaxSonar-EZL0 can also detect large targets to the extended range of 1068 cm (420 inches)

The sensor is small in size, yet the high output acoustic power combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and real-time noise rejection algorithms results in virtually noise free distance readings for most users. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL-MaxSonar-EZ sensor line is factory calibrated to match the sensor beam patterns and provides a long range detection zone.

MB1260 XL-MaxSonar-EZL0 Ultrasonic Rangefinder Product Specifications
? Resolution of 1 cm
? 10Hz reading rate
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
? Virtually no dead zone, objects closer than 25 cm range as 25 cm
? Operates from 3.3-5.5V
? Low 3.4mA average current requirement
? Small, light weight module
? Designed for easy integration into your project or product
? Operational Temperature from 0℃ to +65℃ (32℉ to +149℉)
? Real-time automatic calibration (voltage, humidity, ambient noise)
? Firmware filtering for better noise tolerance and clutter rejection
? 200,000+ Hours Mean Time Between Failure
? Widest and most sensitive beam of our XL-MaxSonar-EZ sensors
? Maximum range of 1068 cm (420 inches)
? Hardware gain of 4000
? Long range, wide detection zone for small targets

MB1260 XL-MaxSonar-EZL0 Ultrasonic Rangefinder Features and Benefits
? Shares same beam pattern with MB1200
? Maximum range of 1068cm to large targets
? Low power consumption
? Easy to use interface
? Can detect people to approximately 18feet
? 3.3v to 5v operational voltage

MB1260 XL-MaxSonar-EZL0 Ultrasonic Rangefinder Applications and Uses
? Great for people detection
? Security
? Motion detection
? Used with battery power
? Autonomous navigation
? Educational and hobby robotics
? Collision avoidance
? Long range detection

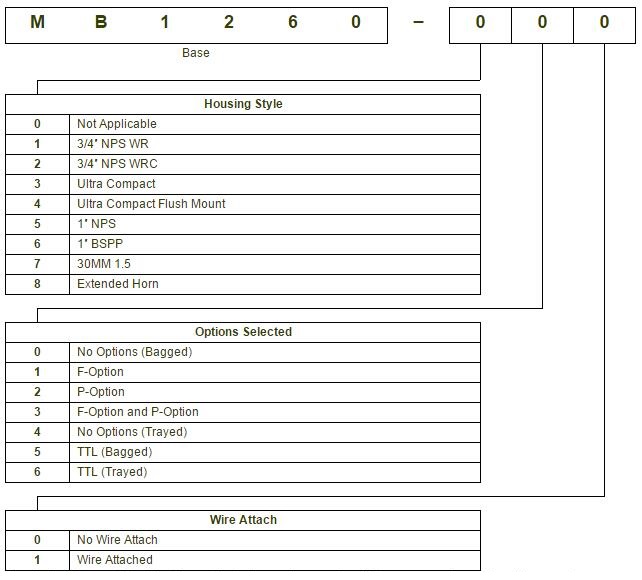

MB1260 XL-MaxSonar-EZL0 Ultrasonic Rangefinder Part Numbers
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
