Product Specification

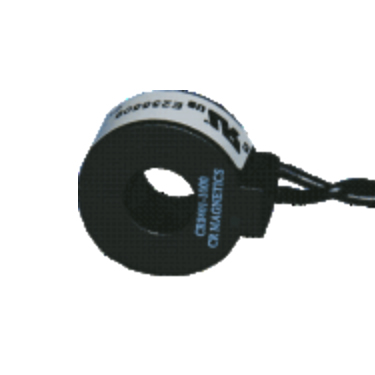

CR Magnetics CR8400 Series of Wire Lead Current Transformers are available in a wide range of sizes and materials to meet any AC current sensing needs.  Major applications include ground fault relays, current measurements, power monitoring and over/under current sensing. This series of transformers provides the benefit of a high accuracy remote monitor for cost sensitive projects. Our General Purpose designs are made from the highest quality silicon steel cores available, and meet most of the common AC current measurement needs. A line of Ground Fault (-G) CTs for measuring low AC currents including electrical shields.

CR8401 Wire Lead Current Transformers Features
? Low cost
? 5 standard sizes
? Non-contact, isolated measurement

CR8401 Wire Lead Current Transformers Specifications
? Construction: Epoxy Encapsulated
? Operating Temperature: -40°C to +85°C
? Stroage Temperature: -45°C to +85°C
? High Potential: 3500 Vac/1 min.
? Frequency: 20 to 1KHz

CR8401 Wire Lead Current Transformers Applications
? Over/under current sensing
? Ground Faults
? Current measurements
? Power monitoring

CR8401 Wire Lead Current Transformers PART NUMBERS

 Te = Effective turns ratio including losses (All Specifications tested at 60 Hz)
