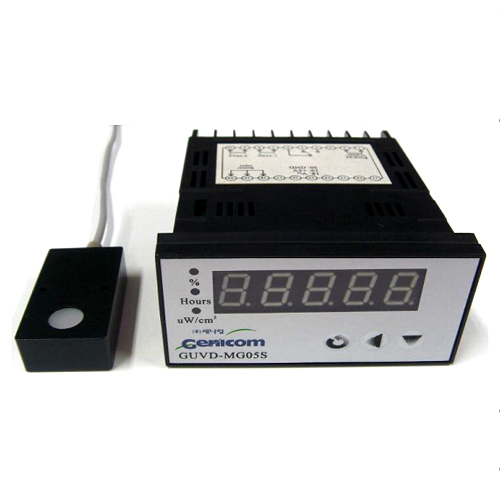

UV Radiometer 5.0 - GUVx-T1xGS5-LA2
- Electro-Optical Characteristics
- Power Supply: AC 85 ~ 265V (50/60Hz)
- Fixing method: Panel Insertion
- Detection Power Range: 0 ~ 19,999 ?/?
- Detection Range:
GUVV-T10GS5-LA2: 230~395nm
GUVB-T11GS5-LA2: 220~320nm
GUVC-T10GS5-LA2?: 220~280nm
GVBL-T12GS5-LA2: 330~445nm
- Model Number: GUVx-T1xGS5-LA2
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
GUVx-T1xGS5-LA2 UV Radiometer 5.0 Description
Display : Absolute Power (AP), Relative Power (RP), and Accumulative Time (AT)Output : DC Voltage, Current, and Relay
GUVx-T1xGS5-LA2 UV Radiometer 5.0 Applications
UV Curing
GUVx-T1xGS5-LA2 UV Radiometer 5.0 Constitution
Display, Sensor Probe
Sensor Probe Dimensions
|
Size (mm3) |
Window (mm) |
Weight (g) |
Case Material |
Cable Length (m) |
| 55 x 30 x 16 | 12 | 57 | AL-60 | 5 |
GUVx-T1xGS5-LA2 UV Radiometer 5.0 Absolute Maximum Ratings
|
Parameter |
Value |
Unit |
Remark |
|
Operating Temperature |
-30 ~ 85 |
°C |
Sensor Probe |
|
0 ~ 50 |
°C |
Display |
|
|
Working humidy |
35 ~ 85 |
%RH |
Display |
|
Power Supply |
85 ~ 265 |
VAC |
50/60 ? |
|
Parameter |
Min. |
Peak |
Max. |
Unit |
Remark |
|
|
Detection Power Range |
0 |
|
19,999 | μW/cm2 |
|
|
|
Detection Range |
GUVV-T10GS5-LA2 |
230 | 350 | 395 | nm |
10% of Max |
|
GUVB-T11GS5-LA2 |
220 | 300 | 320 |
nm |
||
|
GUVC-T10GS5-LA2 |
220 | 254 | 280 |
nm |
||
|
GVBL-T12GS5-LA2 |
330 | 385 | 445 | nm | ||
GUVx-T1xGS5-LA2 UV Radiometer 5.0 Function
1. Display : Absolute Power (μW/cm2) , Relative Power (%), and Accumulative Time (Hours).
2. Output : DC Voltage (1~5V DC), DC Current (4-20mA, 300 ? max load), Relay (NC/NO, 250VAC 3A/30VDC 3A)
