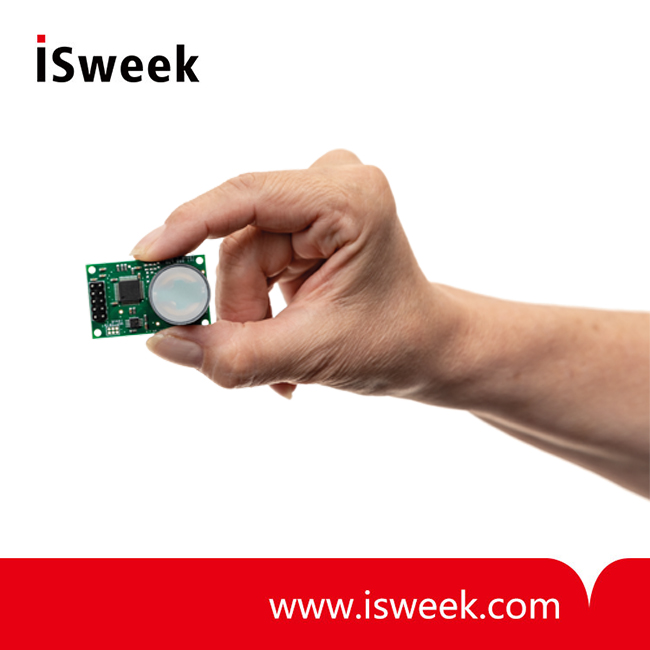

Ultra Low Power Carbon Dioxide Sensor NDIR CO2 Sensor - COZIR-W/ExplorIR-W

? Range: 5%VOL, 20%VOL, 60%VOL
? Digital output
? Optional Temperature and Humidity Output
? Low power consumption
? Fast response, short warm-up time
? Accuracy: ±70 ppm +/- 5% of reading
? Non Linearity: < 1% FS
? Operating Pressure Range: 950 mbar to 10 bar

Model Number: COZIR-W/ExplorIR-W
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

COZIR-W/ExplorIR-W Carbon Dioxide Sensor NDIR CO2 Sensor Summary

COZIR is an ultra low power (3.5mW), high performance CO2 sensor,ideally suited for battery operation, portable instruments and HVAC. Based on GSS IR LED and Detector technology, and innovative optical designs, the COZIR offers the lowest power NDIR sensor available.Optional temperature, humidity and light sensing are available. COZIR is a third generation product from GSS - leaders in IR LED CO2 sensing.

With measurement ranges of 0-5%, 0-10%, 0-60% and 0-100%, COZIR Wide Range sensors are suited for process control applications such as diving, industrial safety and automotive.

? Ultra-low Power 3.5mW
? Measurement ranges from 0 % to 100%
? 3.3V supply.
? Peak current only 33mA.
? Optional Temperature and Humidity Output

COZIR-W/ExplorIR-W Carbon Dioxide Sensor NDIR CO2 Sensor Specifications

General Performance
Warm-up Time	< 10s
Operating Conditions	0°C to 50°C (Standard) -25°C to 55°C (Extended range) 0 to 95% RH, non-condensing
Recommended Storage	-30°C to +70°C
CO2 Measurement
Sensing Method	Non-dispersive infrared (NDIR) absorption Patented Gold-plated optics Patented Solid-state source and detector
Sample Method	Diffusion
Measurement Range	0-5%,0-20%,0-60%,0-100%
Accuracy	±70 ppm +/- 5% of reading
Non Linearity	< 1% of FS
Pressure Dependence	0.13% of reading per mm Hg in normal atmospheric conditions.
Operating Pressure Range	950 mbar to 10 bar
Response Time	4 secs to 2 mins (user Configurable) Reading refreshed twice per second.

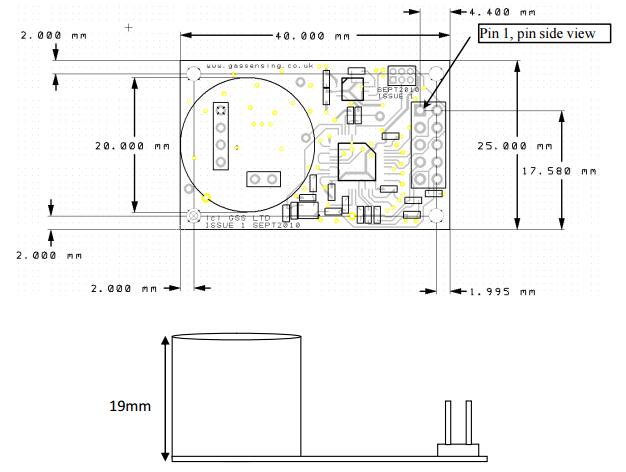

Electrical/ Mechanical
Power Input	3.2 to 5V. (3.3V recommended). Peak Current 33mA. Average Current <1.5mA.
Power Consumption	3.5 mW
