ToughSonic REMOTE 30 Ultrasonic Water Level Sensor - U30-REMOTE Series

? Optimum Range: 20 ft. (6.1 m)
? Max Range: 30 feet (9.1 m)
? Deadband: Typ. < 10 in. (254 mm)
? Temperature: -40 to 158 ℉ (-40 to 70℃)
? Data Output: Modbus, ASCII streaming, specials
? Humidity: 0 to 100% operating
? Type 316 stainless steel housing.
? Sealed epoxy potting for immersion protection.
? Rugged piezoelectric ultrasonic transducer.
? UV resistant, potted-in, 4-wire cable.

Model Number: U30-REMOTE Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

ToughSonic REMOTE 30 Level Sensor
Level & Distance Data Collection for Remote Monitoring

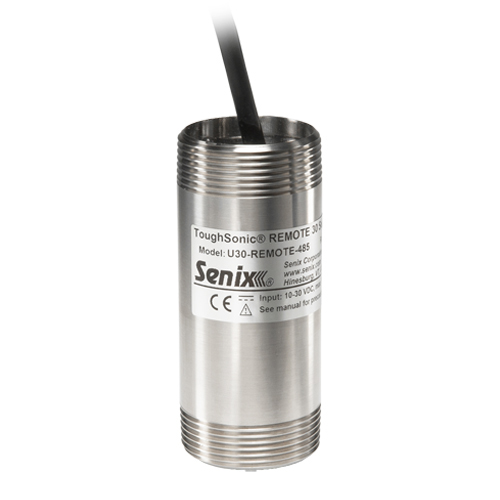

The ToughSonic REMOTE 30 is a remote liquid level sensor with a maximum measurement range of 30 feet (9.1 meters). ?This digital sensor is designed for accuracy and long-termultrasonic sensor stainless steel housing durability in remote monitoring applications. ?With a stainless steel housing, full epoxy potting and NEMA-6P and IP68 ratings, it operates in the harshest climates. ?It comes equipped with Senix Lightening Guard, a system that protects both power and communications circuits from repeated electrical transients of up to 7 kilovolts. The ToughSonic REMOTE 30 uses up to 20% less energy than the ToughSonic 30. It is fully configurable using SenixVIEW software. ?This sensor is mounted on bridges, piers and tanks all over the world in critical remote level monitoring applications.

ToughSonic ultrasonic sensors are built Tough with:
? Type 316 stainless steel housing.
? Sealed epoxy potting for immersion protection.
? Ruggedized piezoelectric ultrasonic transducer.
? 75% better surge protection than IEC 61000-4-5.
? UV resistant, potted-in, 4-wire cable.

ToughSonic ultrasonic sensors are built Smart with:
? SenixVIEW configuration and analysis software controls more than 60 performance parameters and dozens of viewing, analysis and maintenance options.
? Addressable Modbus RTU.
? ASCII or phased high-speed, multi-sensor data collection for special applications.

U30-REMOTE Series?Ultrasonic Water Level Sensor?Some Example Applications:
? Irrigation control
? Open channel flow
? Flood monitoring
? Agricultural machine control
? Liquid tank networks
? SCADA* level sensing
? (*Supervisory Control and Data Acquisition)

U30-REMOTE Series?Ultrasonic Water Level Sensor?Specifications

*Optimum Range??**	?20 ft. (6.1 m)	Max Range *	?30 feet (9.1 m)
Deadband	?Typ. < 10 in. (254 mm)	Beam Width	?7.5° ±1°off axis @ -3db
Case Material	?316 stainless steel	Configuration	?Stored in sensor's non-volatile memory
Temperature	?-40 to 158 ℉ (-40 to 70 ℃)	Data Output	?Modbus, ASCII streaming, specials
Humidity	?0 to 100% operating	Transducer	?75 kHz, Ruggedized Piezoelectric
Compensation	?Selectable temperature compensation	Protection	?NEMA-4X, NEMA-6P, IP68
Data Resolution	?0.0068 in. (0.172 mm) per count	Adjustment	?SenixVIEW PC Software
Repeatability	?Nominal 0.2% of range @ constant temp. Affected by target, distance, environment
Update Rate	?10 Hz (100 ms), SenixVIEW adjustable; also affected by SenixVIEW filter selections
Modbus Protocol	?Modbus RTU, 9600 to 115200 baud, 8 data bits, 1 stop, no parity
ASCII Protocol	?Five ASCII distance characters followed by Carriage Return; for single sensor connections only
RS-485 Networks	?From 1 to 32 sensors can operate in an addressable multi-drop network
Ready time	?< 1 second after power application
Cable	?2m standard length, potted into sensor body, PUR with shield and drain, other lengths available
Conformance	?CE, RoHS, Surge protection exceeds IEC 61000-4-5
Target Requirements
Objects	?Detects liquid surface, flat or curved objects. Surface must reflect ultrasound to sensor
*Distance Ranges ()**	?Affected by size, shape, orientation of target (sound level reflected back to sensor), environment? ?Restrict use to Optimum Range when using over a wide range of environmental conditions
Orientation	?Sensor should be oriented perpendicular to liquid surface for maximum reflection
Optical	?Unaffected by target color, light, transparency or other optical characteristics

U30-REMOTE Series?Ultrasonic Water Level Sensor?Connections

Connection	?Wire	?Description
Power ()**	?Brown	?10-30 VDC @ 55 mA max;Typical:35 mA @ 24 VDC
Ground	?Blue	?Power & interface common
RS-232 out?RS-485-	?Gray	?Serial data connection?(depends on model)
RS-232 in?RS-485+	?Yellow	?Serial data connection?(depends on model)

(**) Continuous measurements at default interval. Minimum 15 VDC input for optimum sensitivity.

U30-REMOTE Series?Ultrasonic Water Level Sensor?Part Numbers

Model Number	?Description
U30-REMOTE-232	?Sensor with serial RS-232 interface (limited to single sensor connections)
U30-REMOTE-485	?Sensor with serial RS-485 interface (allows addressable multi-sensor networks)
also offers interconnection, communications, mounting, and display components
