Product Specification

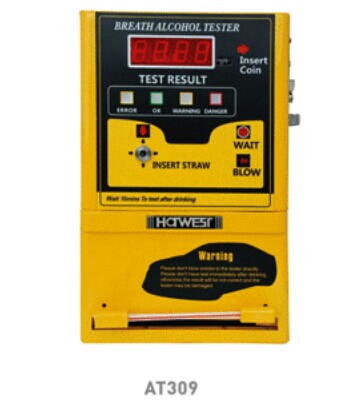

AT309 Stand-alone Alcohol Checker

Feature:
Suitable for bar or restaurant, hotel, disco etc
Fuel Cell Sensor, Sensor Module rechangeable
Coin operated
Used by disposable straw
Straw box for 200pcs straw one time
Other language panel offered
Audio and light warning method
Test result with 4 digits display
Large lighting block to indicate the operating procedure on the panel
Power by AC adaptor 110/220V
Setup 1 kind coin with 1-15 pcs
Press straw dispenser to get 1 straw

Technical information:
Sensor type: Electrochemical (fuel cell) alcohol sensor, Module changeable
Test Range: 0.000-2.000mg/l
   (0.400%B.A.C; 4.000%oB.A.C; 4.000g/l;)
Alarming level:
    Pass level: 0.090mg/L (could be modified)
    Fail level:0.250mg/L (could be modified)
Accuracy: +/-0.005 @ 0.05BAC%
Working environment:
    temperature: 0 degree-50 degree
    humidity: <95%RH (No Dews)
Power: AC110/220V
Dimension lXbXh: (mm) 250X105X400
Indication manner: mg/l, mg/100ml,g/l ,%BAC, BAC optional
Coin for single time: 0-15 (For 0, the tester can be tested without coin).
Coin diameter: 20mm-28mm
Coin thickness: 1.2mm-2.5mm
Coins Capacity: about 200 pieces
Straw capacity: 200pcs (?<=7mm)
Breath sampling time: about 5 seconds continuous breath.

Certificate: CE, RoHS

Package:
    Standard: Carton packing for each piece.
    1pc per carton, 9.00Kgs per carton
