Modular Flat Surface pH & ORP Electrodes - S8000CD/S8075CD Series

? pH Range: 0 - 14pH (0-12.3pH with low Na+ ion error)
? Modular Flat Surface pH/ORP Electrodes

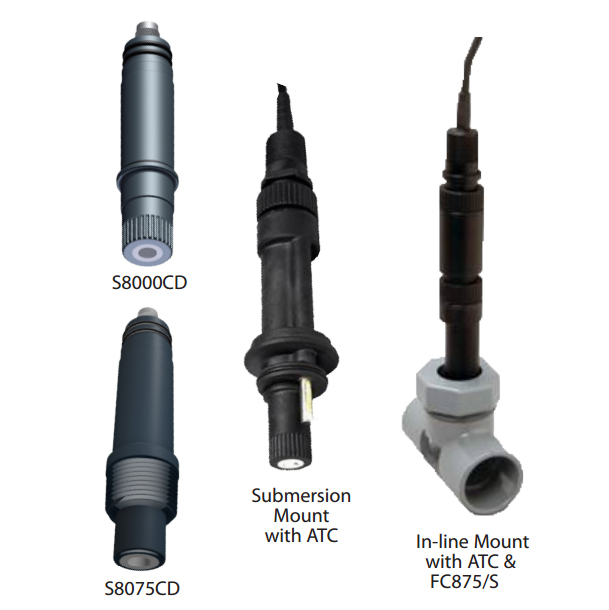

? Configurable for In-line or Submersion Use
? Optional plug-in Electronic Interfaces
? Enhanced Sensorex ERP Reference System
? REDOX, HF and Low Ionic Solution Options

Model Number: S8000CD/S8075CD Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

S8000 Series Modular pH & ORP Systems

Item No.: S8000CD, S8000CDHF, S8000CD-ORP, S8000CD-LC, S8075CD,
EA890, EA891, EA899, EA899TC, EM800, EM801, EM802-pH, EM802-ORP,

S653, S853, S855, FC800, FC801, FC805, FC806, FC875/T, FC875/S

S8000 Series Modular pH & ORP Systems Features
? Modular Flat Surface pH/ORP Electrodes
? Configurable for In-line or Submersion Use
? Optional plug-in Electronic Interfaces
? Enhanced Sensorex ERP Reference System
? REDOX, HF and Low Ionic Solution Options

S8000 Series Modular pH & ORP Systems Description

The S8000 series flat surface self cleaning electrode platform is designed for versatility and flexibility. You purchase only the components you need, and can adapt what you have to changing installation needs or interface options.

The sensor utilizes Sensorex's proven flat surface self cleaning technology. The reference system has been enhanced with Sensorex's ERP technology. This provides a complex path which protects the reference in the presence of interacting ions such as heavy metals, proteins, silver and sulfides that interact with silver or chloride. Heavy duty high temperature reference gels offer protection against thermal breakdown of the gel. The same electrode is used for in-line or submersion applications and is constructed in a chemically resistant PPS body.

For applications which require more than a direct electrode output, plug-in electronic modules are available.

The first three modules available are:
a. Battery powered unity gain module EM800
b. Battery powered differential module EM801
c. Blind 2 wire 4-20 mA transmitter EM802/pH or EM802/ORP

Cap/cables are stocked in two standard lengths, 10 feet and 25 feet. Both cap cable utilize an 8 pin connector. Special cable lengths are also available.

S8000 Series Modular pH & ORP Systems Specifications

pH Range	0 - 14pH (0-12.3pH with low Na+ ion error)
Temperature Range	0-100 Degrees Celsius, de-rated under pressure. 0-80 Degrees Celsius, when mounted in flow cell or 70 Degrees Celsius with submerged electronic module
Pressure Range	0-100 psig (7.5 Bar), de-rated under temperature
Reference Type	Double Junctions, Sensorex ERP System
Optional Models	ORP Redox Electrode: -1000mV to +1000mV
HF resistant pH electrode	0-12pH, 0-50 degrees Celsius
Low Ionic models	for solutions of <100uS/cm conductivity

S8000 Series pH & ORP Electrodes ORDERING INFORMATION
ELECTRODE - pH or ORP

Part Number	Description

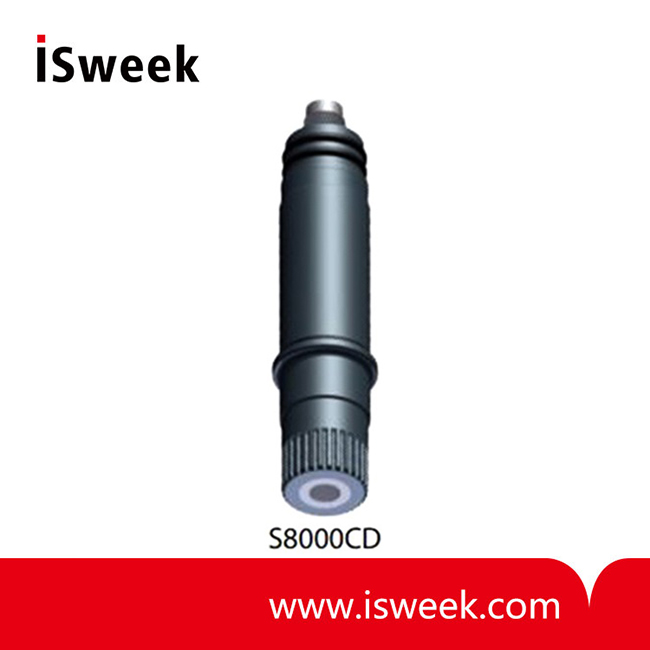

S8000CD	Flat surface pH elecrode cartridge S8000 Series, Ryton body, double junction reference
S8000CD-ORP	Flat surface ORP elecrode cartridge S8000 Series, Ryton body, double junction reference
S8000CDHF	Flat surface pH elecrode cartridge S8000 Series, HF resistant, Ryton body, double junction reference
S8000CD-LC	Flat surface pH elecrode cartridge S8000 Series, for low conductivity water (<100uS), Ryton body, double junction reference

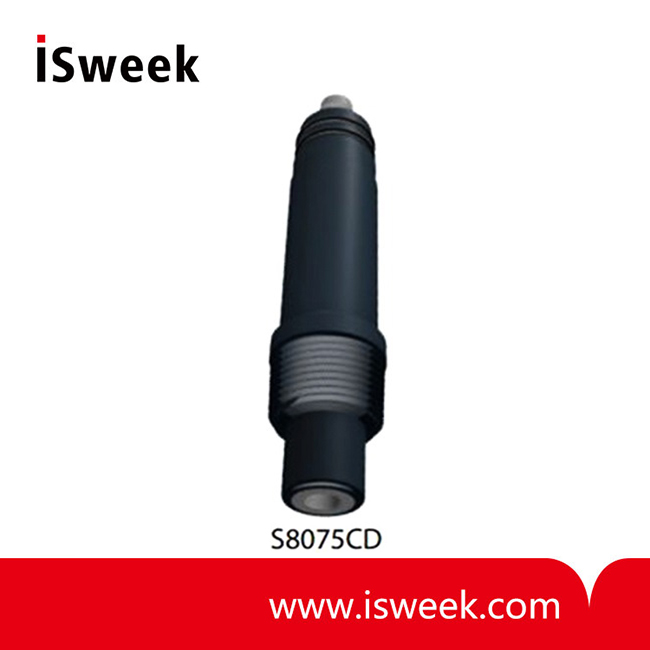

S8075CD	Flat surface pH elecrode cartridge S8000 Series, Ryton body, double junction reference, integrated 3/4" NPT threads
S8075CD-ORP	Flat surface ORP elecrode cartridge S8000 Series, Ryton body, double junction reference, integrated 3/4" NPT thread
S8075CDHF	Flat surface pH elecrode cartridge S8000 Series, HF resistant, Ryton body, double junction reference, integrated 3/4" NPT threads
S8075CD-LC	Flat surface pH elecrode cartridge S8000 Series, for low conductivity water (<100uS), Ryton body, double junction reference, integrated 3/4" NPT threads
