Product Specification

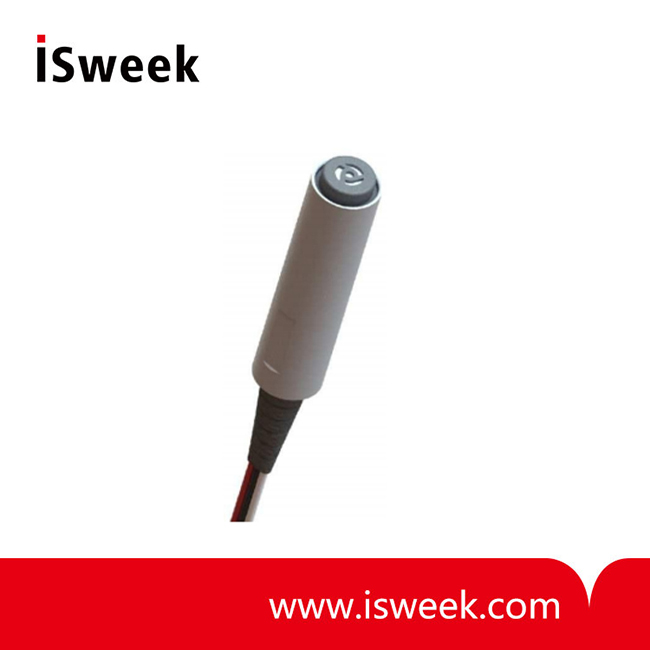

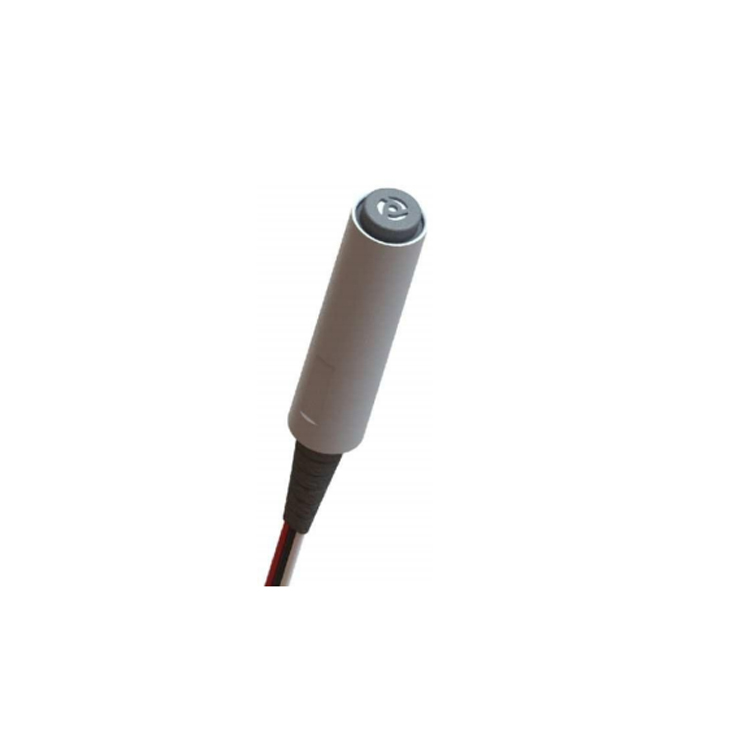

Korea Samyoung Relative Humidity Module HW2200 Description：
Based on the capacitive polymer RH Sensor developed by Samyoung S&C, HW2200 is a dedicated humidity transducer designed for OEM applications where a

reliable and accurate measurement is needed.?

Direct interface with a micro-controller is made possible with the module’s linear voltage output

Korea Samyoung Relative Humidity Module?HW2200??Specifications：
Small size product · Product free from Lead, Cr(6+), Cd and Hg
Humidity calibrated within +/-3% @55%RH
Typical 1 to 3.6 Volt DC output for 0 to 100% RH at 5Vdc supply
Ratiometric to voltage supply from 4.75Vdc to 5Vdc

Korea Samyoung Relative Humidity Module?HW2200??Applications：

Korea Samyoung Relative Humidity Module?HW2200??Performance Specs：
