Product Specification

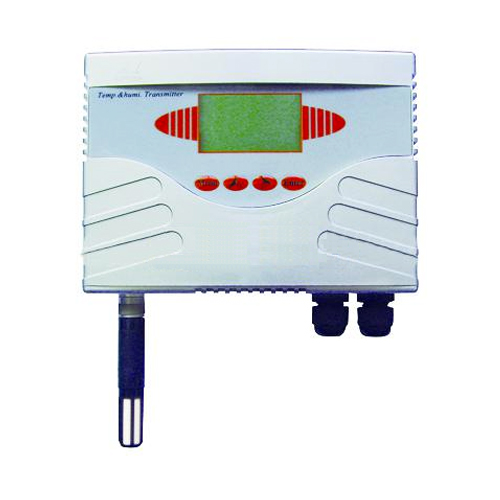

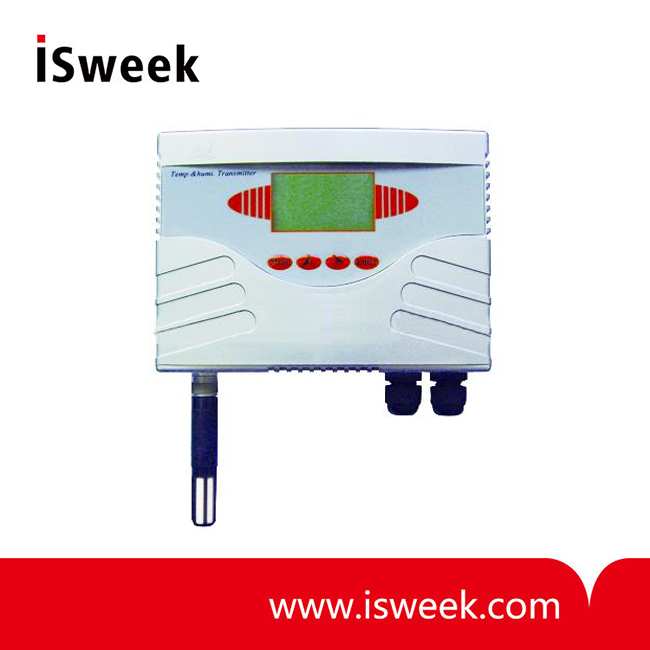

JWSH-8 Temperature and Humidity Transmitter Introduction
JWSH-8 series temperature and humidity transmitters belongs to industrial products. The measurement is from -100°C to +200°C, use various high-precision probes from Swiss Rotronic company.

JWSH-8?Temperature and Humidity Transmitter?Use
The model JWSH-8 series product is the industrial temperature and humidity transmitter with high accuracy,? ?wide temperature range and l28 x 64 dot LCD display. It converts the temperature and humidity of air to stand electrical signals (e.g. 4-20mA, 0-5VDC, RS-232/485) for auto control system or remote data acquisition system. It’s extensively used for fields such as smart building, telecommunication, electric power, petrifaction, environmental protection, papermaking, metallurgy, foodstuff, medical treatment etc.

JWSH-8?Temperature and Humidity Transmitter?Characteristic
? ±0.8%RH, ±0.1°C (23°C) accuracy, with temperature compensation?
? -100°C to +200°C temperature Range
? 128 x 64 dot LCD display with blue back
? Wall-mounted installation easily
? A variety of analog output 0-5V or 0-10V or 4-20mA
? RS-232/485 and relay outputs
? Can measure dew point
