Product Specification

Description:

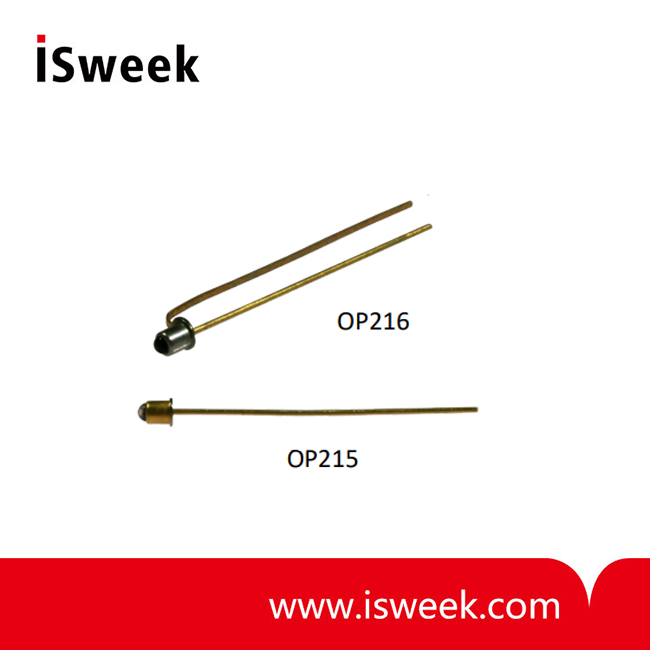

    Each OP215 and OP216 device is an 890 nm gallium aluminum arsenide infrared emitting diode (GaAlAs), mounted in a hermetically sealed “"pig tale”package with an enhanced temperature range and a narrow irradiance pattern that provides high on-axis intensity for excellent coupling efficiency.These devices offer significantly higher power output than GaAs at equivalent drive currents and have a wavelength that is matched to silicon’s peak response. Their small package size permits high device density mounting.

    The OP216A device provide an additional mounting tab connected to the Cathode/Case.

    these LEDs are mechanically and spectrally matched to the OP300 series, 0P516,OP600 series and OP640 series devices.

Features:

• Hermetically sealed package
• Mechanically and spectrally matched to other OPTEK devices
• Designed for direct mount to PCBoard
• Enhanced temperature range
• Excellent coupling efficiency

Applications:

• Non-contact reflective object sensor.
• Assembly line automation
• Machine automation
• Machine safety
• End of travel sensor
• Door sensor

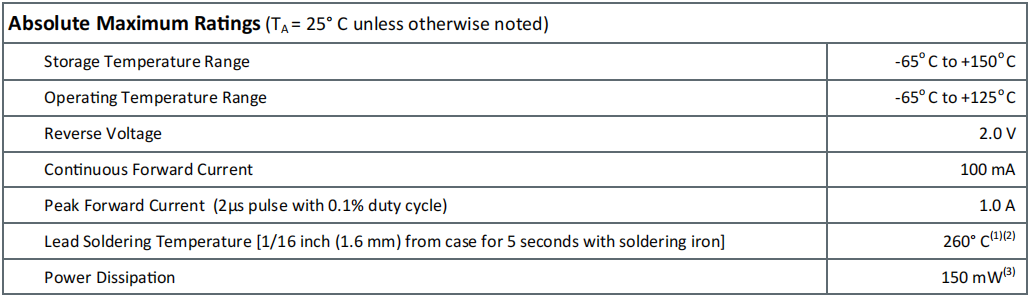

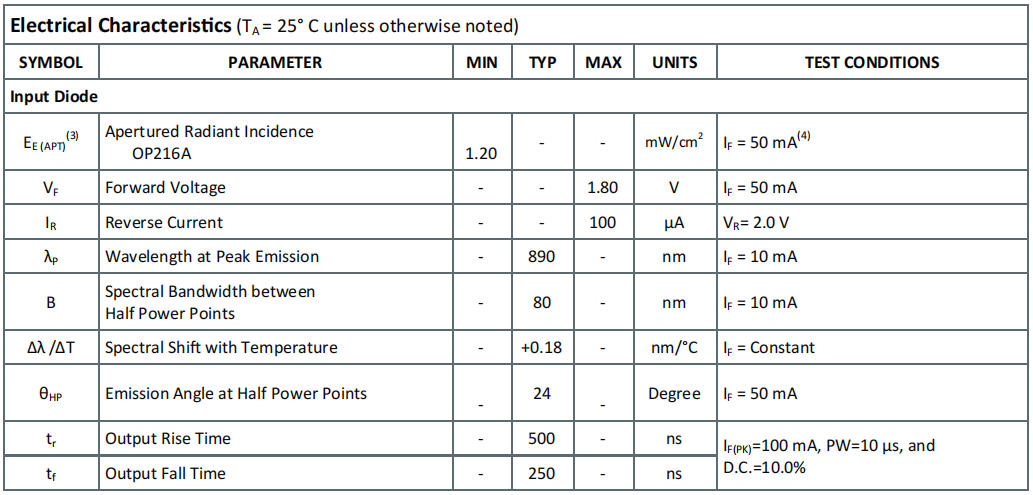

Electrical Specifications:
