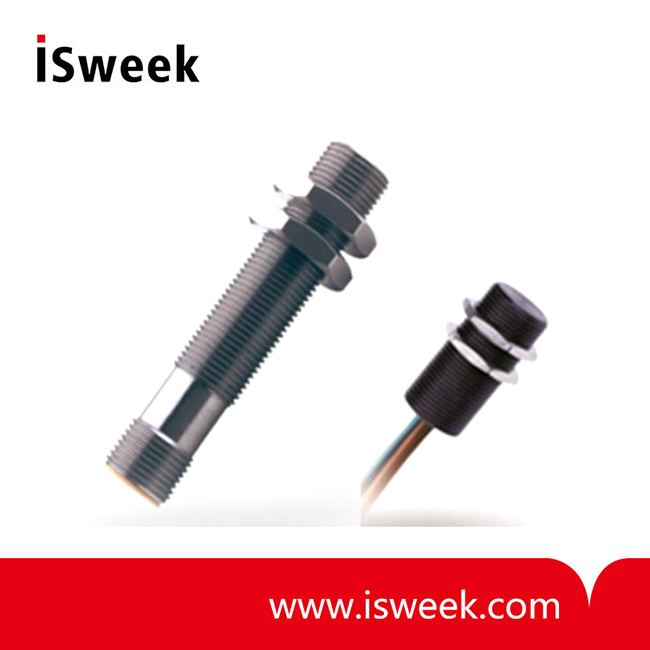

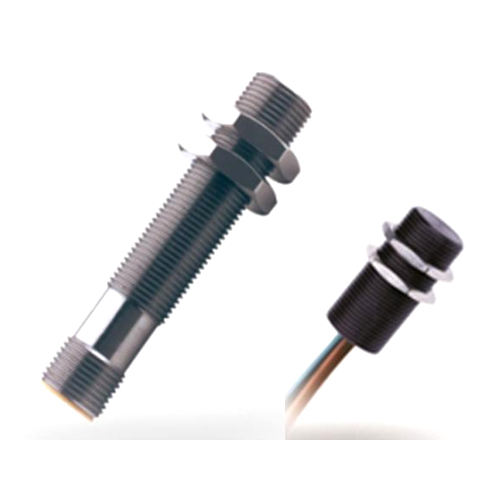

Hall Effect Gear Tooth Speed Sensors - GS1005-GS1007 Series

? From near zero speed up to 15 kHz sensing capability
? Vibration: Sinusoidal, 15 g max from 40 Hz to 2 kHz
? Operating Supply Voltage: 5 to 24 VDC
? Supply Current: 3 mA typ., 6 mA max
? Compatible with unregulated power supply
? RoHS compliant
? IP67
? Typical air gap of 1.5 mm

Model Number: GS1005-GS1007 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

GS1005 - GS1007 Sensors
Hall Effect gear tooth speed sensor?with adjustable anodized aluminum housing

GS1005-GS1007 Series?Gear Tooth Speed Sensors Description
The GS1005-GS1007 series gear tooth speed sensors are Hall Effect devices designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking current output.

GS1005-GS1007 Series?Gear Tooth Speed Sensors?Features
? From near zero speed up to 15 kHz sensing capability
? 10 bit dynamic threshold direction offers:
? ?- Automatically adjusting magnetic range
? ?- Self-compensating to target geometry
? Compatible with unregulated power supply
? RoHS compliant
? IP67
? Typical air gap of 1.5 mm*

GS1005-GS1007 Series?Gear Tooth Speed Sensors?Typical Applications
? Speedometers
? Anti-lock braking systems
? Exercise equipment
? CNC machine tools

GS1005-GS1007 Series?Gear Tooth Speed Sensors?Environmental Specifications

Vibration	Sinusoidal, 15 g max from 40 Hz to 2 kHz
Mechanical Shock Resistance	50 g
Maximum Speed Detection	15 kHz
Operating Temperature (GS100501)	-40 ?C to 105 ?C (-40 ?F to 221 ?F)
Operating Temperature (GS100502, GS100701)	-40 °C to 125 ?C (-40 ?F to 257 ?F)
Storage Temperature	-40 °C to 125 ?C (-40 ?F to 257 ?F)
Ingress Protection	IP67

GS1005-GS1007 Series?Gear Tooth Speed Sensors?Electrical Specifications

Operating Supply Voltage	5 to 24 VDC
Maximum Input Voltage	30 VDC
Maximum Reverse Voltage	24 VDC
Supply Current	3 mA typ., 6 mA max ? ? ? ??
Output Sink Current	20 mA max
Recommended Pull-Up Resistor	See chart

GS1005-GS1007 Series?Gear Tooth Speed Sensors?Mechanical Specifications

Housing Material	Anodized Aluminum
Maximum Installation Torque Limit	5.65 Nm (50 in lb) on threads ? ? ? ? ? ? ? ? ? ? ? ? ?
Operating Air Gap / Sensing Distance* ?1.5 mm (0.06") * With recommended target type; see drawing	1.5 mm (0.06")
Sensor Orientation	Not sensitive

Products

Part Number	Thread	Leads	Connector
GS100501	M12-1		12 mm, 4-pin circular mating connector, type IEC 60947-5-2
GS100502	M12-1	20 AWG x 1 m
GS100701	15/32"-32	20 AWG x 1 m
