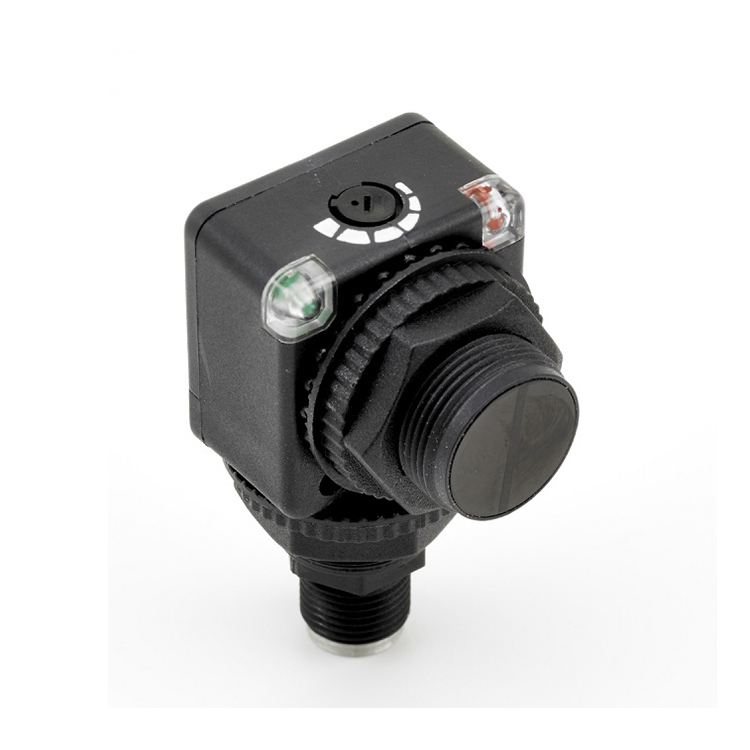

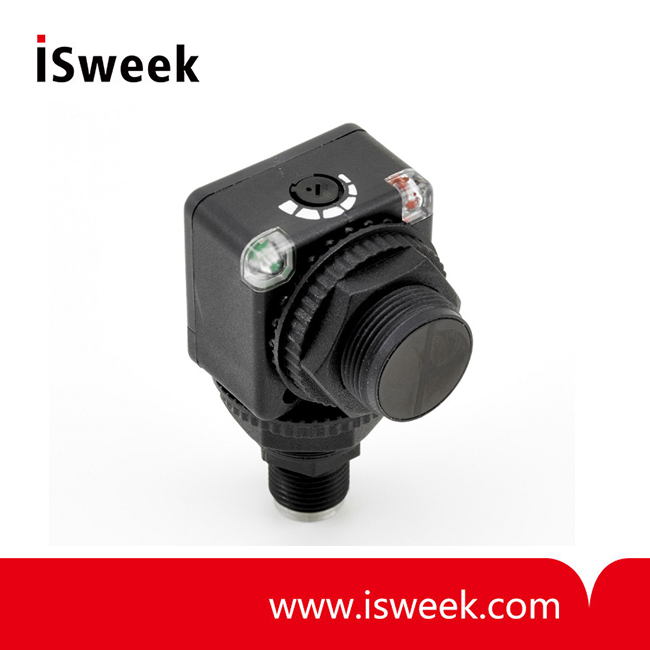

Compact Photoelectric Sensor - RP18 Series

? Through Beam: 0.1 ~ 20m
? Retroreflective: 0.1 ~ 2m
? Diffuse: 20 ~ 0.5m
? M18 threaded lens
? Visible Red LED
? Several mounting options
? Multi-voltage
? Operating Temperature: -25°C to +55°C

Model Number: RP18 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

RP18 Series Compact Photoelectric Sensor Description
? M18 threaded lens
? Visible Red LED
? Several mounting options
? Multi-voltage

Modes	Ranges
Through Beam	0.1 ~ 20m
Retroreflective	0.1 ~ 2m
Diffuse	20 ~ 0.5m

RP18 Series Compact Photoelectric Sensor

	Through-beam	Diffuse	Diffuse (Fixed-field with Background Suppression)	Retroreflective	Retroreflective -with Polarizing Filter
Operating Range	20m (65.6 ft.)	DC: 500mm ( 19.7 in.) AC: 300mm (11.8 in.)	100mm (3.94 in)	2m (6.56 ft.)	1m (3.28 ft.)
Light Emission	950nm Infrared LED	Infrared LED, 880 nm	Infrared LED, 880nm	Infrared LED, 950nm	Red LED, 680nm
DC Models - Quick Connect, M12 - Recommended Mating Cable: part # R-FS4TZ-V075 (straight), R-FA4TZ-V075 (right-angle)
Emitter	RP18-T020MD- EY9Q4LE
NPN	RP18-T020MN- CY9Q4UE	RP18-D0500N- CY9Q4UE	RP18-D0100N- CY9Q4UE-BS	RP18-L2000N- CY9Q4UE	RP18-L2000N- CY6Q4UE-PF
PNP	RP18-T020MP- CY9Q4UE	RP18-D0500P- CY9Q4UE	RP18-D0100P- CY9Q4UE-BS	RP18-L2000P- CY9Q4UE	RP18-L2000P- CY6Q4UE-PF
AC Models - Quick Connect, ?"-20 UNF - Recommended Mating Cable: part # U-FS4TA-V165 (straight), U-FA4TA-V165 (right-angle)
Emitter (2-wire)	RP18-T020MA- EY9Q4LM
Light-ON (3-wire)	RP18-T020MA- LY9Q4UM	RP18-D0300A- LY9Q4UM	RP18-D0100A- LY9Q4UM-BS	RP18-L2000A- LY9Q4UM	RP18-L2000A- LY6Q4UM-PF
Dark-ON (3-wire)	RP18-T020MA- DY9Q4UM	RP18-D0300A- DY9Q4UM	RP18-D0100A- DY9Q4UM-BS	RP18-L2000A- DY9Q4UM	RP18-L2000A- DY6Q4UM-PF
AC/DC Models - Quick Connect, ?"-20 UNF - Recommended Mating Cable: part # U-FS4TA-V165 (straight), U-FA4TA-V165 (right-angle)
Emitter (2-wire)	RP18-T020MC- EY9Q4LM
Light-ON (2-wire)	RP18-T020MC- LY9Q4UM	RP18-D0300C- LY9Q4UM	RP18-D0100C- LY9Q4UM-BS	RP18-L2000C- LY9Q4UM	RP18-L2000C- LY6Q4UM-PF
Dark-ON (2-wire)	RP18-T020MC- DY9Q4UM	RP18-D0300C- DY9Q4UM	RP18-D0100C- DY9Q4UM-BS	RP18-L2000C- DY9Q4UM	RP18-L2000C- DY6Q4UM-PF

RP18 Series Compact Photoelectric Sensor Technical Data

	DC	AC	AC/DC
Operating Voltage	10-30 VDC	24-240 VAC	20-250 VAC/DC
Voltage Drop	2.5V or less	3V @300mA AC; 2V @ 15mA AC	3V or less
Current Consumption	30mA or less	5mA or less	30mA or less
Response Time	1.5ms	15ms	15ms
Max. Load Current	200mA	300mA
Output Operation	Light-ON or Dark-ON selectable by control input wire	Light-ON or Dark-ON selectable by type number
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Overload Current Protection	Yes
Housing Material	PBT (plastic) housing
Indicators	Red LED indicator
Environmental Rating	IP67
Operating Temperature	-25°C to +55°C (Max. relative humidity: 85%)
EMC	IEC 60947-5-2, Parts 7.2.6.1.2.3 or RFI >3V/m (in 30-1000MHz), EFT >1KV, ESD >4KV (contact)
Voltage With tandability	IEC 60947-5-2, Part 8.3.3.4 or 500 VDC (or 1500 VAC) for 1 min., between all supply terminals connected together and enclosure
Insulation Resistance	>20MΩ, with 500 VDC (or 1500 VAC) megger between all supply terminals connected together and enclosure.
Vibration Resistance	IEC 60947-5-2, Part 7.4.2 or 10-55 Hz, 1.0mm amplitude in x, y, and z directions for 30 min.
Shock Resistance	IEC 60947-5-2, Part 7.4.1 or 30g, 11ms in x, y, and z directions for six times each
Cable	Standard length 2m. Other lengths available upon request
Connecto	M12x1 DC Micro Connector	?-20" UNF
