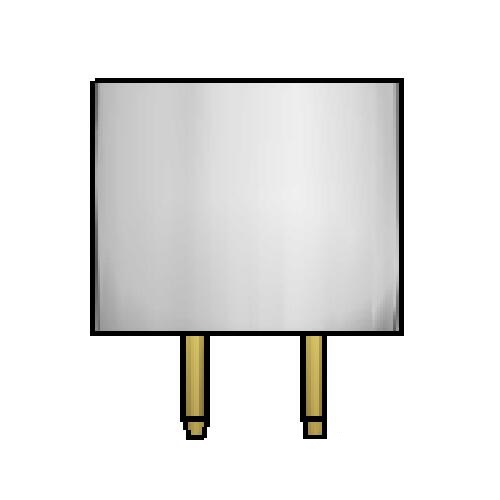

Combustible Gas Sensor - 4P-75C CiTipeL

? Operating Principle: Catalytic Oxidation
? Gases Detected: Combustible gases
? Range: 0-100% LEL
? Sensitivity: 24 ± 4 mV/%methane
? T90 Response Time: <20 seconds (methane)
? Linearity: Linear up to 3% methane
? Operating Voltage: 3.0 ± 0.02 VDC
? Operating Temperature Range: -20°C to +55°C
? Operating Humidity Range: 0-90% RH non-condensing

Model Number: 4P-75C CiTipeL
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

4P-75C CiTipeL Combustible Gas Sensor Key Features & Benefits:
? ATEX, UL and CSA Approvals
? Withstands EN/IEC 60079-0 impact test
? Enhanced H2S and silicone poison resistance

4P-75C CiTipeL Combustible Gas Sensor Performance Characteristics

MEASUREMENT
Operating Principle	Catalytic Oxidation
Gases Detected	Combustible gases
Suitable for	Methane, ethane, propane, butane, pentane, hexane, carbon monoxide & hydrogen
Unsuitable for	Higher hydrocarbons, alcohols, ketones, esters, hydrogen sulfide and other sulfur containing compounds
Range	0-100% LEL
Sensitivity*	24 ± 4 mV/%methane
T90 Response Time*	<20 seconds (methane)
Poison Resistance	Resistance to H2S poisoning Superior silicone resistance
H2S Filter Lifetime	Typically 1000 ppm hr
Linearity	Linear up to 3% methane

ELECTRICAL
Operating Voltage	3.0 ± 0.02 VDC
Detector Operating Current	75 ± 7 mA
Maximum Power Consumption	263 mW
Resolution	1% LEL

MECHANICAL
Casing Material	Stainless steel 316
Pin Material	Gold plated brass
Weight	24 g (nominal)
Orientation Sensitivity	None

ENVIRONMENTAL
Operating Temperature Range	-20°C to +55°C
Operating Pressure Range	1 atm ± 20%
Operating Humidity Range	0-90% RH non-condensing

LIFETIME
Long Term Span Drift*	<5% signal/month
Long Term Zero Drift*	<5% LEL methane /month
Recommended Storage Temp	0°C to 20°C
Shelf life	6 months in sealed container
Warranty	12 months from date of despatch

* Specifications are valid at 20°C, 50%RH and 1013 mbar at a flow rate of 300 ml/min. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.
