Product Specification

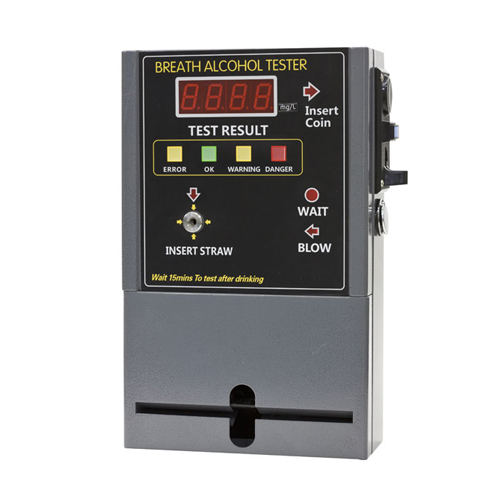

AT319 Coin Operated Vending Breathlyzer

AT319 Breath Alcohol Tester Feature:
? Suitable for bar or restaurant, hotel, disco etc public places
? Fuel Cell Sensor, Sensor Module replaceable
? Coin operated
? Used by disposable straw
? Straw box for 200pcs straw one time
? Other language panel offered
? Audio and visual alarming method
? Test result with 4 digits display
? Bright LED guide the operation on the panel
? Power by AC adaptor 110/220V
? Setup 1 kind coin with 1-15 pcs
? Press straw dispenser to get 1 straw

AT319 Breath Alcohol Tester  Technical information:
? Sensor type: Fuel cell alcohol sensor, Module replaceable
? Test Range: 0.000-2.000mg/l (0.400%B.A.C; 4.000B.A.C; 4.000g/l;)
? Alarming level:
   Pass level: 0.090mg/L (could be modified)
   Fail level:  0.250mg/L (could be modified)
? Accuracy: +/-0.005 @ 0.05BAC%
? Working environment:
  Temperature: 0degree-50degree
  Humidity: <95%RH (No Dews)
? Dimension l x b x h: (mm) 250 x 105 x 400
? Indication manner: mg/l, mg/100ml, g/l, %BAC, BAC optional
? Coin for single time: 0-15 (For 0, the tester can be tested without coin).
? Coin diameter: 20mm-28mm
? Coin thickness: 1.2mm-2.5mm
? Coins Capacity: about 200 pieces
? Straw capacity: 200pcs (?<=7mm)
? Breath sampling time: about 5 seconds continuous breath.
