Analog Output Linear Position Sensor - MB Series

Measuring range: 50-2500mm?
Output: 0~10VDC
Compact structure
Strong anti-interferenceability
Sealedstain-resistance
Oil-resistance
Waterproof (vapor)

Model Number: MB Series

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Features:
MB series products are customized products for the American Parker and the size of the electronic head is only 23 mm. They adopt the sealed type design and are suitable for measuring occasions with strict demands for the installation space of electronic head. The features: compact structure, strong anti-interferenceability, sealedstain-resistance, oil-resistance, waterproof (vapor), etc.

Analog outputs includee: dc current 4 ~ 20 mA (forward, reverse) and dc voltage 0 ~ 10 V (forward, reverse); SSI outputs includee: 24, 25, 26 bit binary or gray code; They can be widely used in engineering machinery, mechanical power and some other occassions.

Products Data:

	Analog output
Parameters	Specifications
Measuring range	50-2500mm
Output	0~10VDC
Resolution	16bit D/A
Linearity	< ±0.04%F.S.
Repertability	< ±0.005%F.S.
Frequency response	Range related
Input voltage	24VDC (-15/+20%)
Operating temperature	-40℃ ~ +85℃
Protection	IP67
Thread	Tight set screws,DIN 913

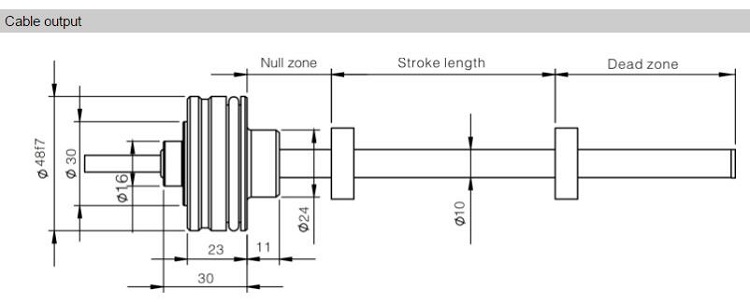

Outline dimensions:

Electrical connection:

Analog output	Pin	Cable	Function
Only provides Straight out of the cable products	1	Grey	Analog outputs
	2	Pink	DC ground
	3	Yellow	(+)COM.(reserved)
	4	Green	(-)COM.(reserved)
	5	Brown	+24VDC(-15%/+20%)
	6	White	DC GND(0 Vdc)
