Product Specification

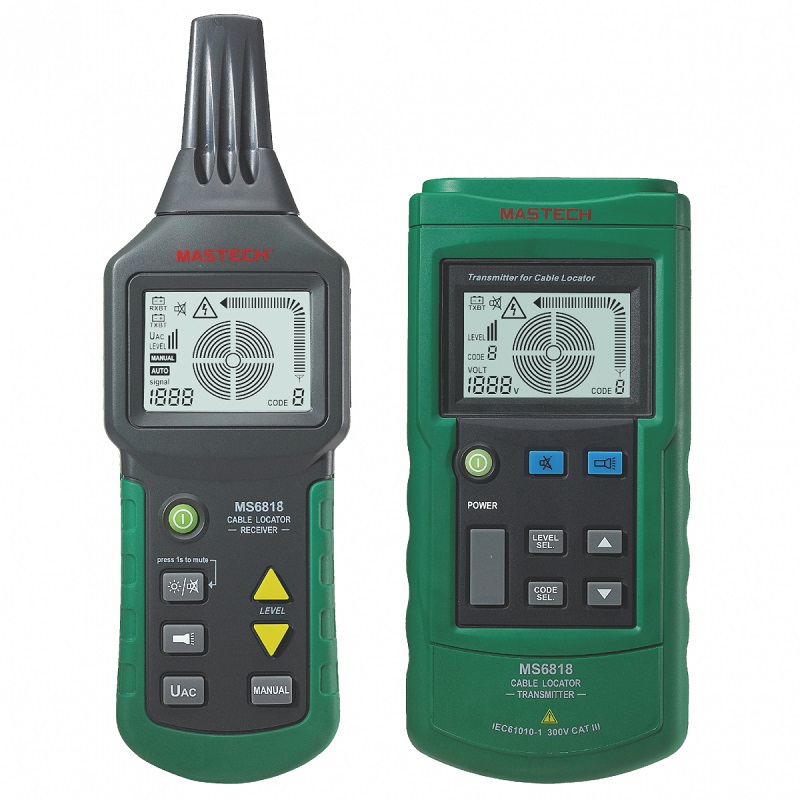

MS6818 Advanced Wire Tracker

The MASTECH MS6818 Underground Wire Cable Metal Pipe Locator Detector Tester consists of a signal transmitter and a receiver, widely used in the construction and maintenance of communication cables, power cables, metal pipes, and much more. Current and voltage conducting cables, electrical circuits,  conduits, water and heating pipelines, fuses, switches can all be located. Short circuits and interruptions of assorted lines and cables can be detected. Even better, the detection is possible not only underground but also in walls and concrete.

MS6818 Advanced Wire Tracker Applications and Feature:
? Find the Beaks or Shorts in Cable in the wall or Earth
? Track Cables in the wall or Earth
? Find the Fuse and Safeguard
? Find the Beaks or Shorts in Conduit under the Floor
? Track a Metal Conduit in the Project of ware or hot
? Sensitivity of Receiver can be selected
? Auto Ranging
? Auto Power Off
? Backlight and Worklight

MS6818 Advanced Wire Tracker General Specifications
Transmitter
? Product Size: 190mm x 89mm x 42.5mm / 7.48" x 3.5" x 1.67"
? Product Weight: 420g / 0.92lb
? Power Supply: 1 x 9V 6F22 Battery
Receiver
? Product Size: 241.5mm x 78mm x 38.5mm / 9.5" x 3" x 1.5"
? Product Weight: 350g / 0.77lb
? Power Supply: 6 x 1.5V AAA Battery
? Certificate: CE / ETL / RoHS
? Safety Rating: CAT III 300V
